The Mythical Man-Month: Essays on Software Engineering is a book on software engineering and project management by Fred Brooks, whose central theme is that "adding manpower to a late software project makes it later". This idea is known as Brooks's law, and is presented along with the second-system effect and advocacy of prototyping.

A software requirement specifies a need to be fulfilled by the software product.

A software project may be,

• a brown-field project i.e., develop a product to replace/update an existing software product
• a green-field project i.e., develop a totally new system with no precedent

In either case, requirements need to be gathered, analyzed, specified, and managed.

Requirements come from stakeholders.

Identifying requirements is often not easy. For example, stakeholders may not be aware of their precise needs, may not know how to communicate their requirements correctly, may not be willing to spend effort in identifying requirements, etc.

There are two kinds of requirements:

1. Functional requirements specify what the system should do.
2. Non-functional requirements specify the constraints under which system is developed and operated.

We should spend extra effort in digging NFRs out as early as possible because NFRs are easier to miss  e.g., stakeholders tend to think of functional requirements first and sometimes they are critical to the success of the software.  E.g. A web application that is too slow or that has low security is unlikely to succeed even if it has all the right functionality.

Requirements can be prioritized based the importance and urgency, while keeping in mind the constraints of schedule, budget, staff resources, quality goals, and other constraints.

A common approach is to group requirements into priority categories. Note that all such scales are subjective, and stakeholders define the meaning of each level in the scale for the project at hand.

Some requirements can be discarded if they are considered ‘out of scope’.

Here are some characteristics of well-defined requirements ^{[📖 zielczynski]}:

• Unambiguous
• Testable (verifiable)
• Clear (concise, terse, simple, precise)
• Correct
• Understandable
• Feasible (realistic, possible)
• Independent
• Atomic
• Necessary
• Implementation-free (i.e. abstract)

Besides these criteria for individual requirements, the set of requirements as a whole should be

• Consistent
• Non-redundant
• Complete

In a brainstorming session there are no "bad" ideas. The aim is to generate ideas; not to validate them. Brainstorming encourages you to "think outside the box" and put "crazy" ideas on the table without fear of rejection.

Surveys can be used to solicit responses and opinions from a large number of stakeholders regarding a current product or a new product.

Observing users in their natural work environment can uncover product requirements. Usage data of an existing system can also be used to gather information about how an existing system is being used, which can help in building a better replacement  e.g. to find the situations where the user makes mistakes when using the current system.

Interviewing stakeholders and domain experts can give us useful information that project requirements.

Focus groups are a kind of informal interview within an interactive group setting. A group of people (e.g. potential users, beta testers) are asked about their understanding of a specific issue, process, product, advertisement, etc.

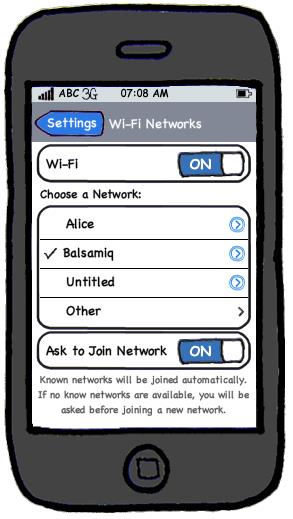

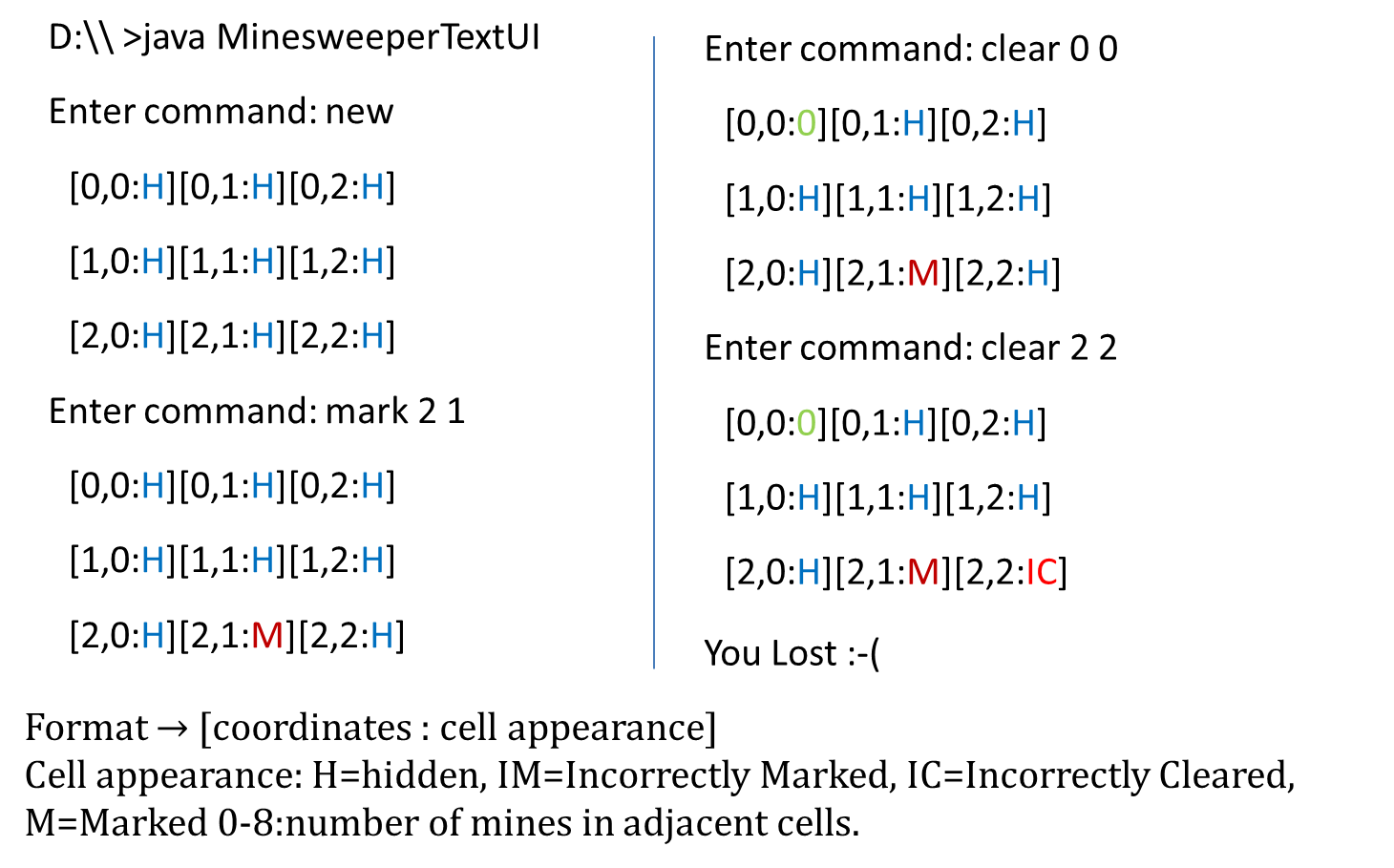

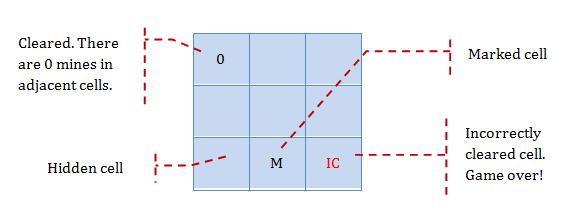

Prototyping can uncover requirements, in particular, those related to how users interact with the system. UI prototypes are often used in brainstorming sessions, or in meetings with the users to get quick feedback from them.

^{[source: http://balsamiq.com/products/mockups]}

💡 Prototyping can be used for discovering as well as specifying requirements  e.g. a UI prototype can serve as a specification of what to build.

Studying existing products can unearth shortcomings of existing solutions that can be addressed by a new product. Product manuals and other forms of technical documentation of an existing system can be a good way to learn about how the existing solutions work.

A normal textual description (i.e. prose) can be used to describe requirements. Prose is especially useful when describing abstract ideas such as the vision of a product.

❗️ Avoid using lengthy prose to describe requirements; they can be hard to follow.

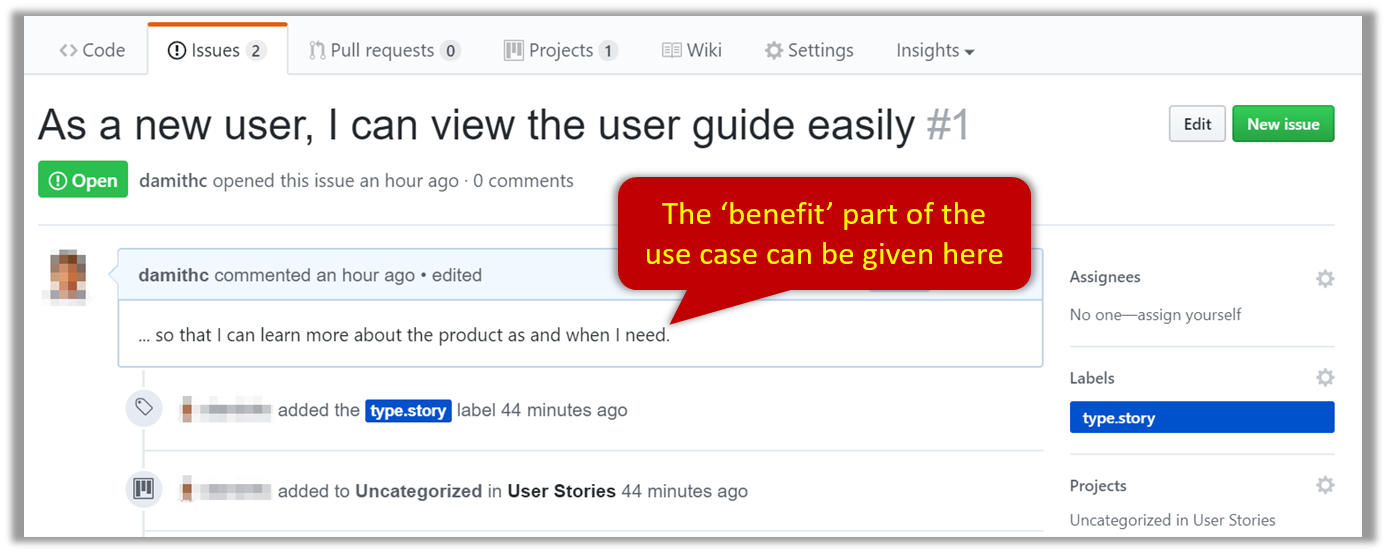

A common format for writing user stories is:

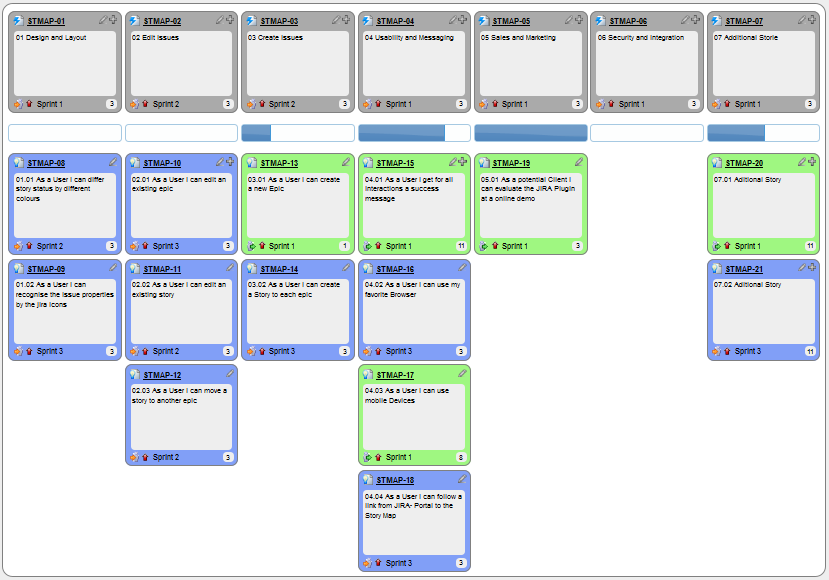

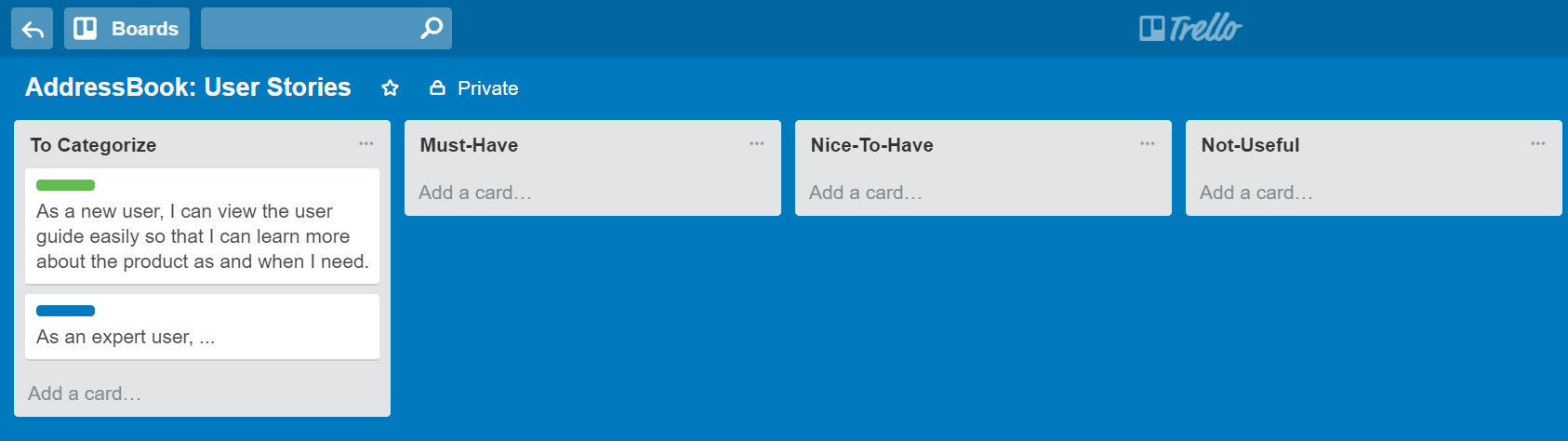

We can write user stories on index cards or sticky notes, and arrange on walls or tables, to facilitate planning and discussion. Alternatively, we can use a software (e.g., GitHub Project Boards, Trello, Google Docs, ...) to manage user stories digitally.

^{[credit: https://www.flickr.com/photos/jakuza/2682466984/]}

^{[credit: https://www.flickr.com/photos/jakuza/with/2726048607/]}

^{[credit: https://commons.wikimedia.org/wiki/File:User_Story_Map_in_Action.png]}

The {benefit} can be omitted if it is obvious.

❗️ It is recommended to confirm there is a concrete benefit even if you omit it from the user story. If not, we could end up adding features that have no real benefit.

We can add more characteristics to the {user role} to provide more context to the user story.

We can write user stories at various levels. High-level user stories, called epics (or themes) cover bigger functionality. We can then break down these epics to multiple user stories of normal size.

We can add conditions of satisfaction to a user story to specify things that need to be true for the user story implementation to be accepted as ‘done’.

Other useful info that can be added to a user story includes (but not limited to)

• Priority: how important the user story is
• Size: the estimated effort to implement the user story
• Urgency: how soon the feature is needed

User stories capture user requirements in a way that is convenient for scoping, estimation and scheduling.

[User stories] strongly shift the focus from writing about features to discussing them. In fact, these discussions are more important than whatever text is written. _{[Mike Cohn, MountainGoat Software 🔗]}

User stories differ from traditional requirements specifications mainly in the level of detail. User stories should only provide enough details to make a reasonably low risk estimate of how long the user story will take to implement. When the time comes to implement the user story, the developers will meet with the customer face-to-face to work out a more detailed description of the requirements. [more...]

User stories can capture non-functional requirements too because even NFRs must benefit some stakeholder.

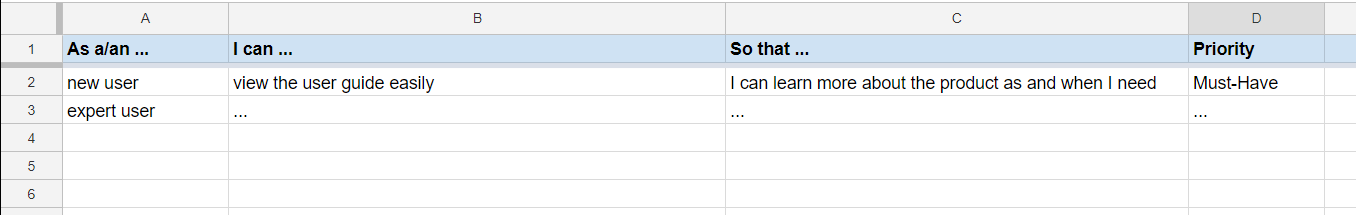

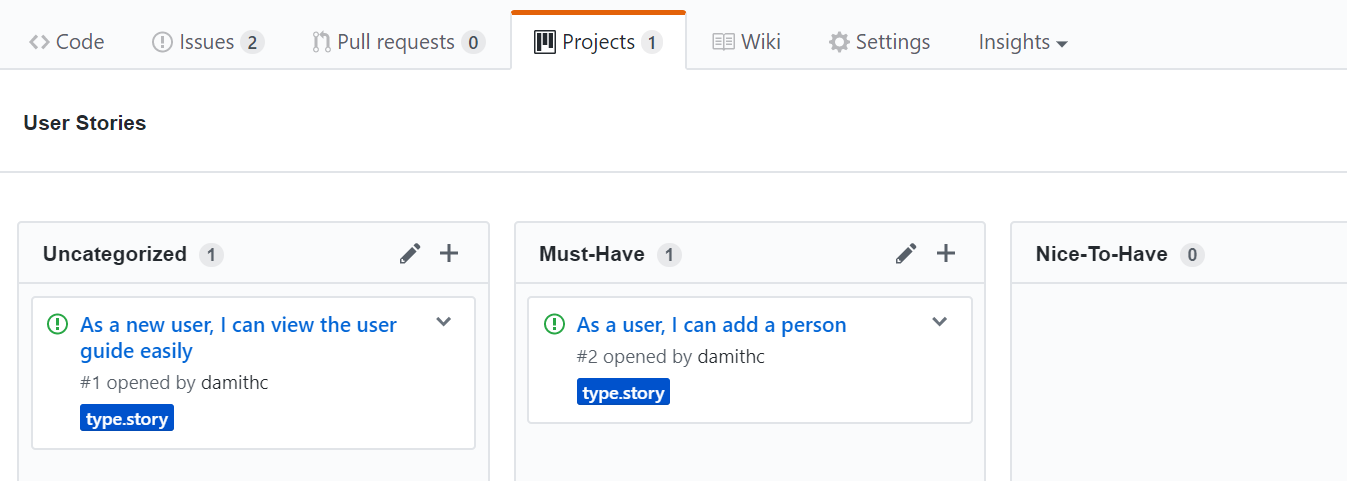

While use cases can be recorded on physical paper in the initial stages, an online tool is more suitable for longer-term management of user stories, especially if the team is not co-located.

A use case describes an interaction between the user and the system for a specific functionality of the system.

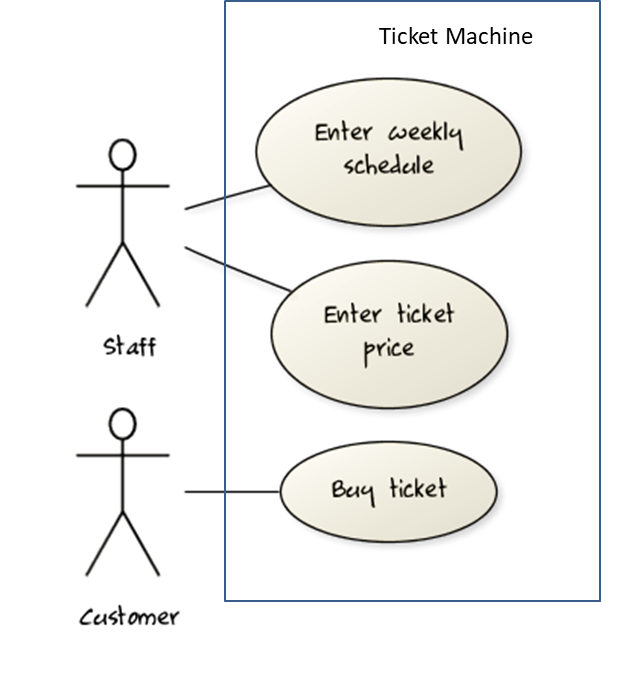

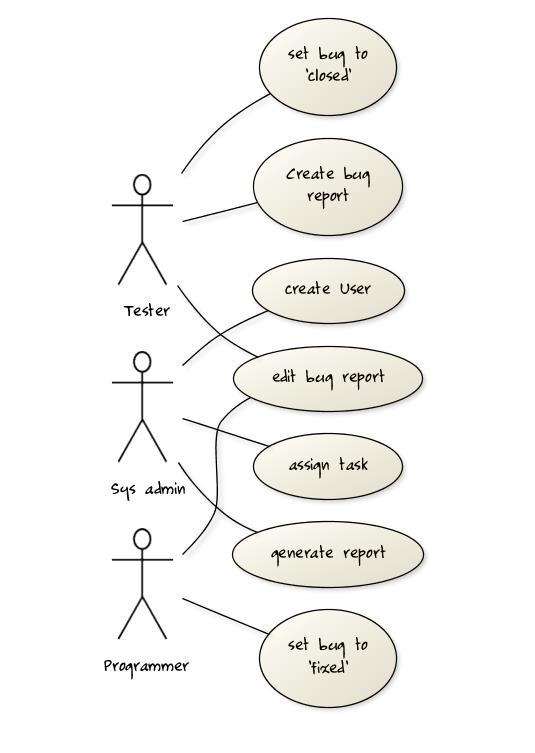

UML includes a diagram type called use case diagrams that can illustrate use cases of a system visually, providing a visual ‘table of contents’ of the use cases of a system. In the example below, note how use cases are shown as ovals and user roles relevant to each use case are shown as stick figures connected to the corresponding ovals.

Use cases capture the functional requirements of a system.

A use case is an interaction between a system and its actors.

Actors in Use Cases

A use case can involve multiple actors.

An actor can be involved in many use cases.

A single person/system can play many roles.

Many persons/systems can play a single role.

Use cases can be specified at various levels of detail.

Writing use case steps

Extensions are "add-on"s to the MSS that describe exceptional/alternative flow of events. They describe variations of the scenario that can happen if certain things are not as expected by the MSS. Extensions appear below the MSS.

📦 This example adds some extensions to the use case in the previous example.

• System: Online Banking System (OBS)
• Use case: UC23 - Transfer Money
• Actor: User
• MSS:
  1. User chooses to transfer money.
  2. OBS requests for details of the transfer.
  3. User enters the requested details.
  4. OBS requests for confirmation.
  5. OBS transfers the money and displays the new account balance.
  6. Use case ends.
• Extensions:
  1. 3a. OBS detects an error in the entered data.
     1. 3a1. OBS requests for the correct data.
     2. 3a2. User enters new data.
     3. Steps 3a1-3a2 are repeated until the data entered are correct.
     4. Use case resumes from step 4.
  2. 3b. User requests to effect the transfer in a future date.
     1. 3b1. OBS requests for confirmation.
     2. 3b2. User confirms future transfer.
     3. Use case ends.
  3. *a. At any time, User chooses to cancel the transfer.
     1. *a1. OBS requests to confirm the cancellation.
     2. *a2. User confirms the cancellation.
     3. Use case ends.
  4. *b. At any time, 120 seconds lapse without any input from the User.
     1. *b1. OBS cancels the transfer.
     2. *b2. OBS informs the User of the cancellation.
     3. Use case ends.

Note that the numbering style is not a universal rule but a widely used convention. Based on that convention,

• either of the extensions marked 3a. and 3b. can happen just after step 3 of the MSS.
• the extension marked as *a. can happen at any step (hence, the *).

When separating extensions from the MSS, keep in mind that the MSS should be self-contained. That is, the MSS should give us a complete usage scenario.

Also note that it is not useful to mention events such as power failures or system crashes as extensions because the system cannot function beyond such catastrophic failures.

In use case diagrams you can use the << extend >> arrows to show extensions. Note the direction of the arrow is from the extension to the use case it extends and the arrow uses a dashed line.

A use case can include another use case. Underlined text is commonly used to show an inclusion of a use case.

📦 This use case includes two other use cases, one in step 1 and one in step 2.

• Software System: LearnSys
• Use case: UC01 - Conduct Survey
• Actors: Staff, Student
• MSS:
  1. Staff creates the survey (UC44).
  2. Student completes the survey (UC50).
  3. Staff views the survey results.
  4. Use case ends.

Inclusions are useful,

• when you don't want to clutter a use case with too many low-level steps.
• when a set of steps is repeated in multiple use cases.

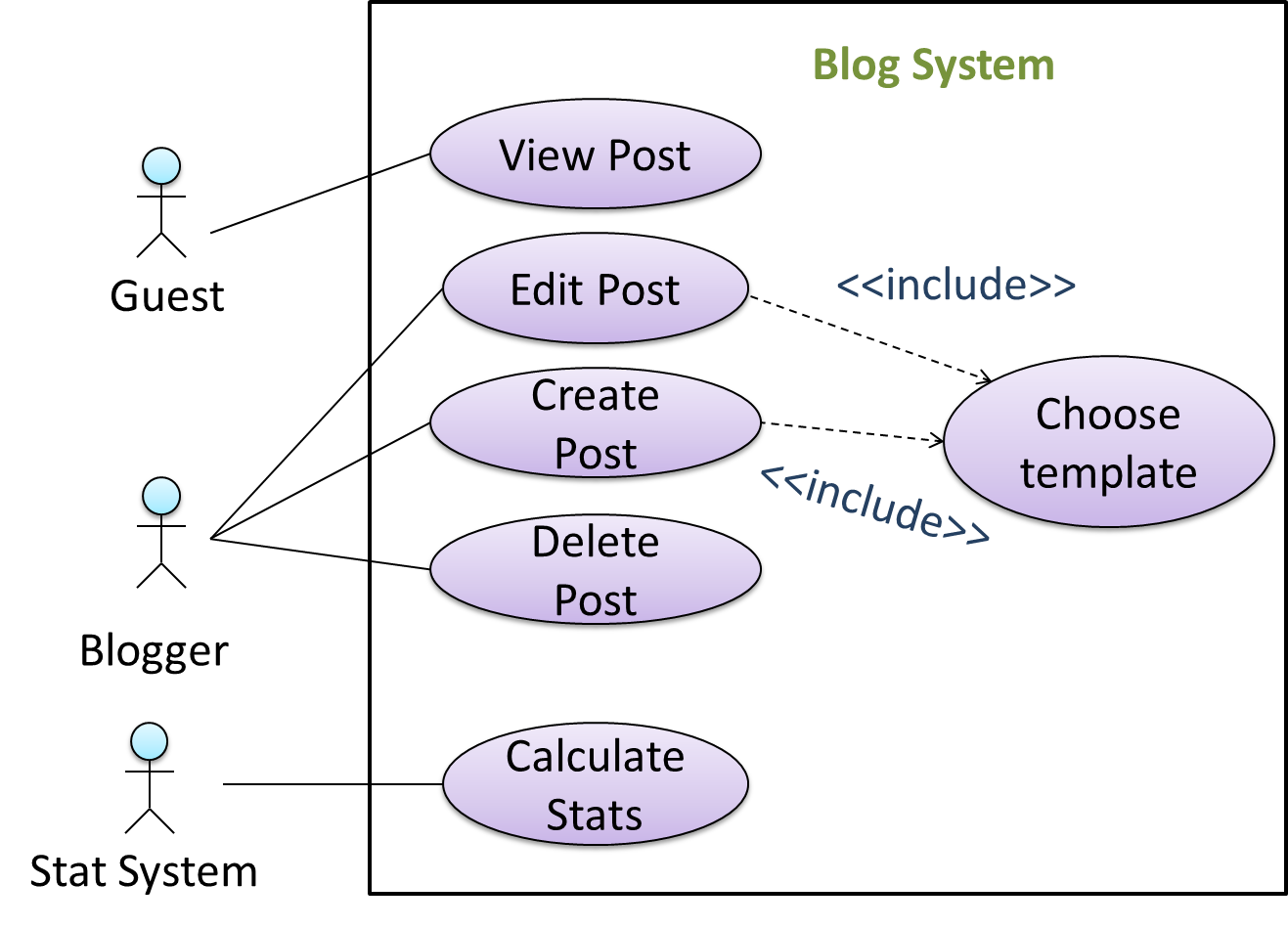

We use a dotted arrow and a << include >> annotation to show use case inclusions in a use case diagram. Note how the arrow direction is different from the << extend >> arrows.

You can use actor generalization in use case diagrams using a symbol similar to that of UML notation for inheritance.

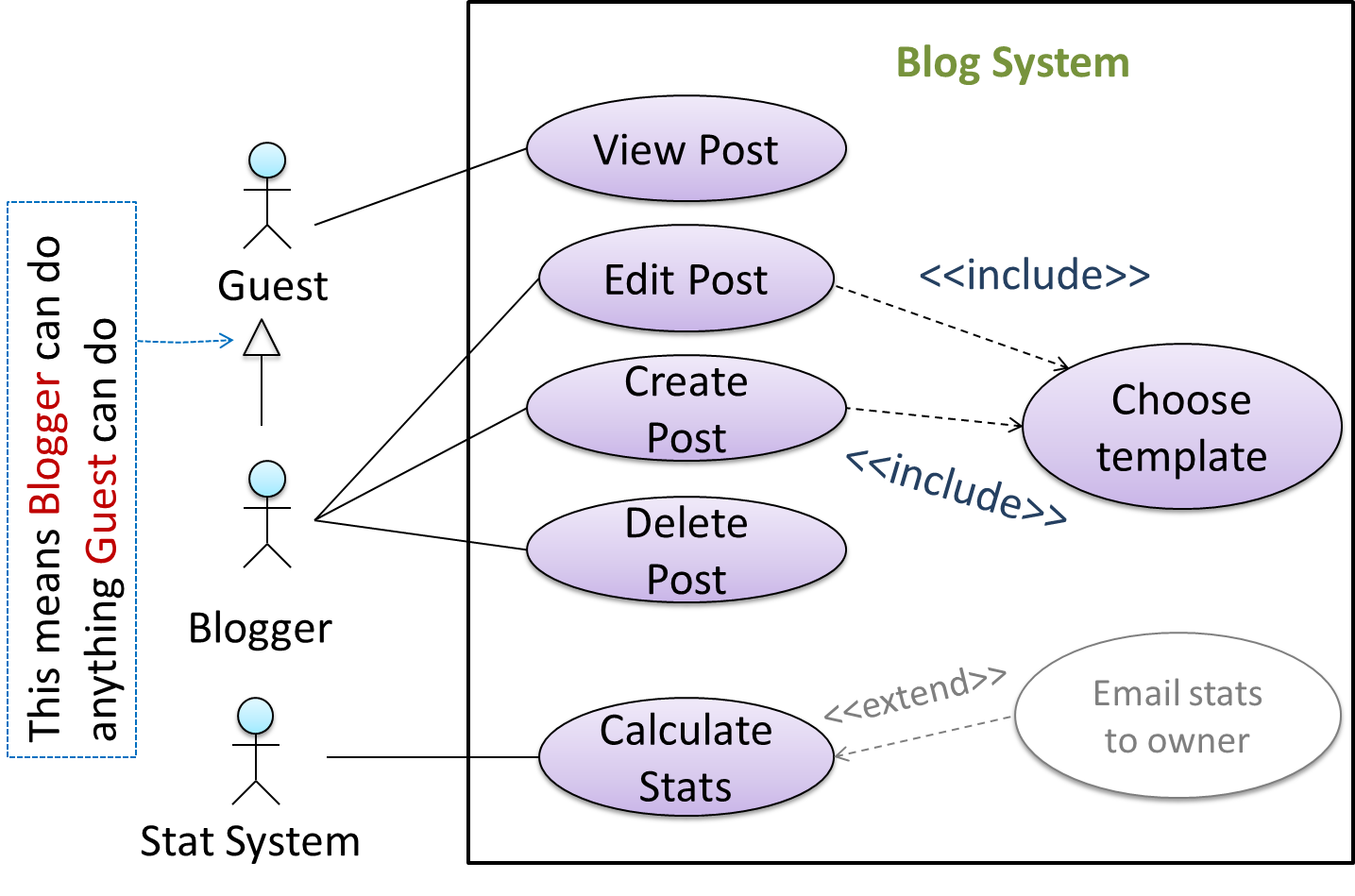

📦 In this example, actor Blogger can do all the use cases the actor Guest can do, as a result of the actor generalization relationship given in the diagram.

💡 Do not over-complicate use case diagrams by trying to include everything possible. A use case diagram is a brief summary of the use cases that is used as a starting point. Details of the use cases can be given in the use case descriptions.

Some include ‘System’ as an actor to indicate that something is done by the system itself without being initiated by a user or an external system.

📦 The diagram below can be used to indicate that the system generates daily reports at midnight.

However, others argue that only use cases providing value to an external user/system should be shown in the use case diagram. For example, they argue that ‘view daily report’ should be the use case and generate daily report is not to be shown in the use case diagram because it is simply something the system has to do to support the view daily report use case.

We recommend that you follow the latter view (i.e. not to use System as a user). Limit use cases for modeling behaviors that involve an external actor.

UML is not very specific about the text contents of a use case. Hence, there are many styles for writing use cases. For example, the steps can be written as a continuous paragraph. Use cases should be easy to read. Note that there is no strict rule about writing all details of all steps or a need to use all the elements of a use case.

There are some advantages of documenting system requirements as use cases:

• Because they use a simple notation and plain English descriptions, they are easy for users to understand and give feedback.
• They decouple user intention from mechanism (note that use cases should not include UI-specific details), allowing the system designers more freedom to optimize how a functionality is provided to a user.
• Identifying all possible extensions encourages us to consider all situations that a software product might face during its operation.
• Separating typical scenarios from special cases encourages us to optimize the typical scenarios.

One of the main disadvantages of use cases is that they are not good for capturing requirements that does not involve a user interacting with the system. Hence, they should not be used as the sole means to specify requirements.

A supplementary requirements section can be used to capture requirements that do not fit elsewhere. Typically, this is where most Non Functional Requirements will be listed.

Software design has two main aspects:

• Product/external design: designing the external behavior of the product to meet the users' requirements. This is usually done by product designers with the input from business analysts, user experience experts, user representatives, etc.
• Implementation/internal design: designing how the product will be implemented to meet the required external behavior. This is usually done by software architects and software engineers.

Object-Oriented Programming (OOP) is a programming paradigm. A programming paradigm guides programmers to analyze programming problems, and structure programming solutions, in a specific way.

Programming languages have traditionally divided the world into two parts—data and operations on data. Data is static and immutable, except as the operations may change it. The procedures and functions that operate on data have no lasting state of their own; they’re useful only in their ability to affect data.

This division is, of course, grounded in the way computers work, so it’s not one that you can easily ignore or push aside. Like the equally pervasive distinctions between matter and energy and between nouns and verbs, it forms the background against which we work. At some point, all programmers—even object-oriented programmers—must lay out the data structures that their programs will use and define the functions that will act on the data.

With a procedural programming language like C, that’s about all there is to it. The language may offer various kinds of support for organizing data and functions, but it won’t divide the world any differently. Functions and data structures are the basic elements of design.

Object-oriented programming doesn’t so much dispute this view of the world as restructure it at a higher level. It groups operations and data into modular units called objects and lets you combine objects into structured networks to form a complete program. In an object-oriented programming language, objects and object interactions are the basic elements of design.

_{-- Object-Oriented Programming with Objective-C, Apple}

Some other examples of programming paradigms are:

Some programming languages support multiple paradigms.

Every object has both state (data) and behavior (operations on data). In that, they’re not much different from ordinary physical objects. It’s easy to see how a mechanical device, such as a pocket watch or a piano, embodies both state and behavior. But almost anything that’s designed to do a job does, too. Even simple things with no moving parts such as an ordinary bottle combine state (how full the bottle is, whether or not it’s open, how warm its contents are) with behavior (the ability to dispense its contents at various flow rates, to be opened or closed, to withstand high or low temperatures).

It’s this resemblance to real things that gives objects much of their power and appeal. They can not only model components of real systems, but equally as well fulfill assigned roles as components in software systems.

_{-- Object-Oriented Programming with Objective-C, Apple}

Object Oriented Programming (OOP) views the world as a network of interacting objects.

OOP solutions try to create a similar object network inside the computer’s memory – a sort of a virtual simulation of the corresponding real world scenario – so that a similar result can be achieved programmatically.

OOP does not demand that the virtual world object network follow the real world exactly.

Every object has both state (data) and behavior (operations on data).

Every object has an interface and an implementation.

Every real world object has an interface that other objects can interact with and an implementation that supports the interface but may not be accessible to the other object.

Similarly, every object in the virtual world has an interface and an implementation.

Objects interact by sending messages.

Both real world and virtual world object interactions can be viewed as objects sending message to each other. The message can result in the sender object receiving a response and/or the receiving object’s state being changed. Furthermore, the result can vary based on which object received the message, even if the message is identical (see rows 1 and 2 in the example below).

The concept of Objects in OOP is an abstraction mechanism because it allows us to abstract away the lower level details and work with bigger granularity entities i.e. ignore details data formats and the method implementation details and work at the level of objects.

Encapsulation protects an implementation from unintended actions and from inadvertent access.
_{-- Object-Oriented Programming with Objective-C, Apple}

An object is an encapsulation of some data and related behavior in two aspects:

1. The packaging aspect: An object packages data and related behavior together into one self-contained unit.

2. The information hiding aspect: The data in an object is hidden from the outside world and are only accessible using the object's interface.

Writing an OOP program is essentially writing instructions that the computer uses to,

1. create the virtual world of object network, and
2. provide it the inputs to produce the outcome we want.

A class contains instructions for creating a specific kind of objects. It turns out sometimes multiple objects have the same behavior because they are of the same kind. Instructions for creating a one kind (or ‘class’) of objects can be done in one go and use that same instructions to instantiate (i.e. create) objects of that kind. We call such instructions a Class.

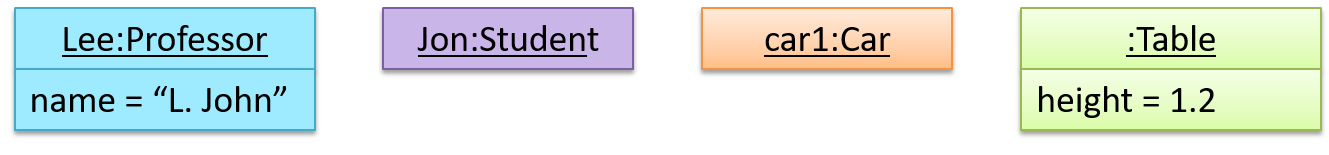

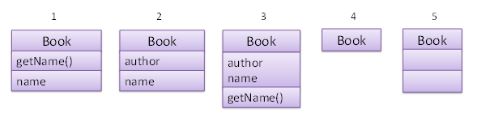

Let us use the UML notation to illustrate classes and objects under discussion.

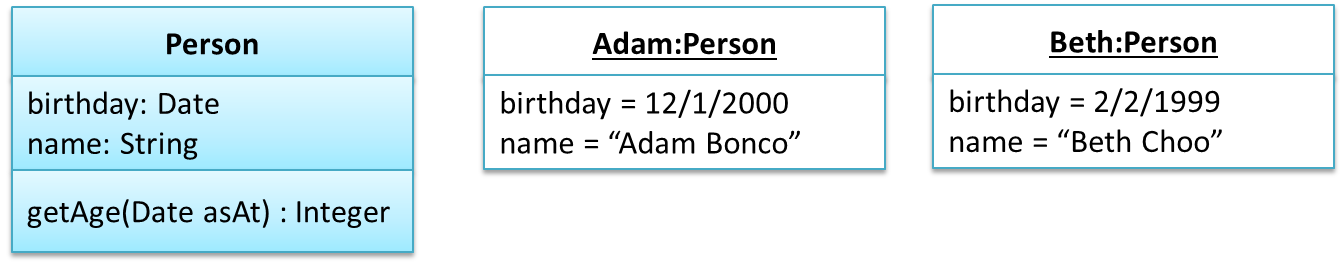

Person class and some example instances of the Person class.

Given below is a tutorial you can refer to (from Oracle’s official Java tutorials) to learn how to implement java classes, in the unlikely case you don't know how to do that already.

• Classes, methods, variables – Start from the linked page and follow the next few steps in the tutorial

While all objects of a class has the same attributes, each object has its own copy of the attribute value.

However, some attributes are not suitable to be maintained by individual objects. Instead, they should be maintained centrally, shared by all objects of the class. They are like ‘global variables’ but attached to a specific class. Such variables whose value is shared by all instances of a class are called class level attributes.

Similarly, when a normal method is being called, a message is being sent to the receiving object and the result may depend on the receiving object.

However, there can be methods related to a specific class but not suitable for sending message to a specific object of that class. Such methods that are called using the class instead of a specific instance are called class-level methods.

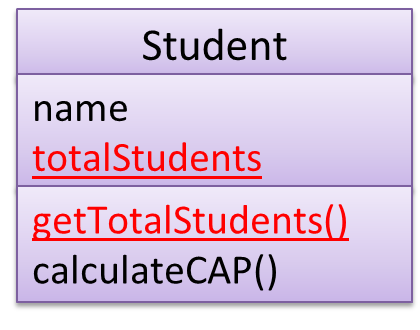

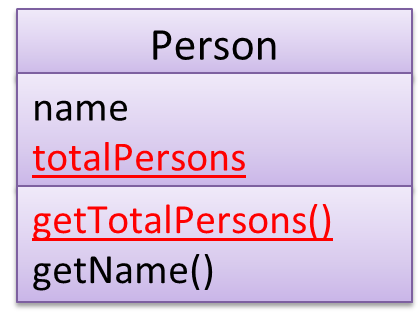

Class-level attributes and methods are collectively called class-level members (also called static members sometimes because some programming languages use the keyword static to identify class-level members). They are to be accessed using the class name rather than an instance of the class.

📦 A Student class with a class-level attribute and a method:

You can refer to Oracle’s official Java tutorial on class-level members to learn how to implement Java class-level members, in the unlikely case you don't know how to do that already.

Objects in an OO solution need to be connected to each other to form a network so that they can interact with each other. Such connections between objects are called associations.

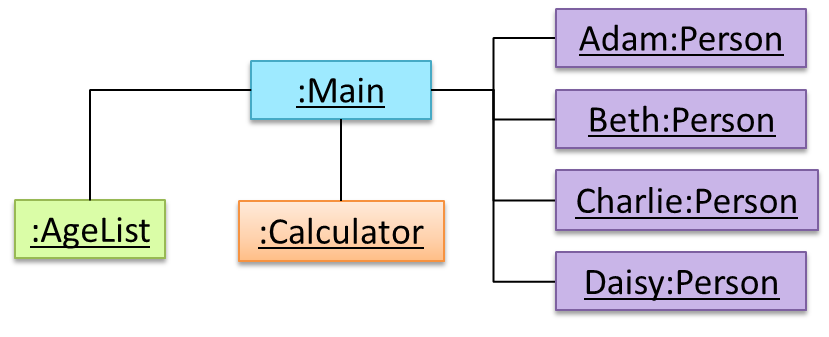

📦 An object diagram example showing associations among objects. For example, there is an association between the AgeList object and the Main object.

Associations in an object structure can change over time.

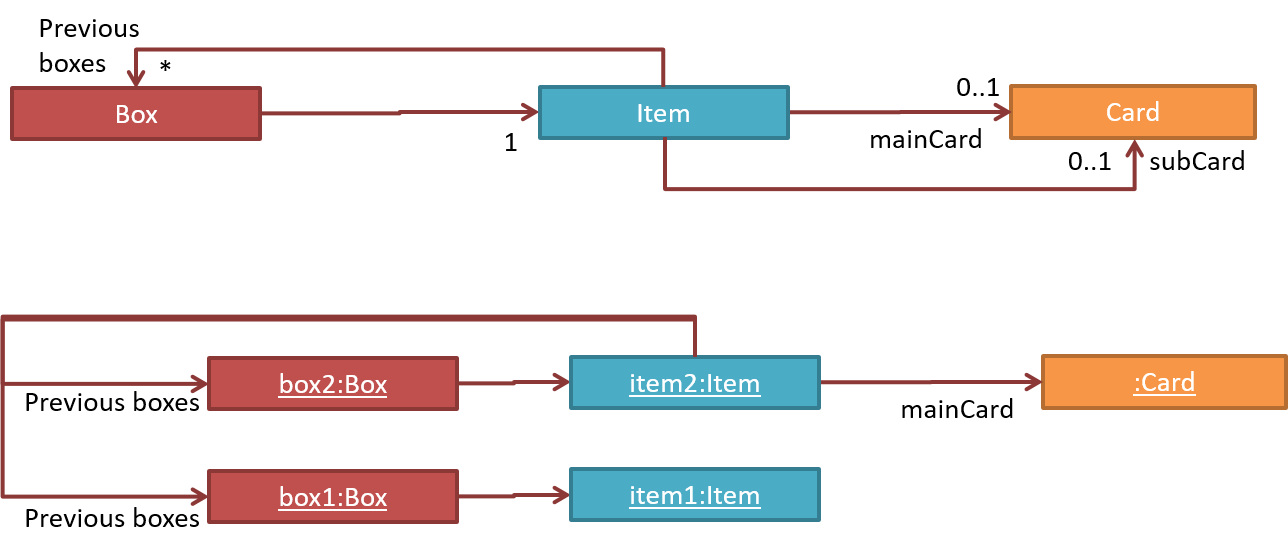

Associations among objects are reflected correspondingly in the class diagram too, as it is the class diagram that dictates the nature of the associations allowed in the object structures.

📦 An example class diagram showing associations between classes.

When two classes are linked by an association, it does not necessarily mean both classes know about each other. The concept of which class in the association knows about the other class is called navigability.

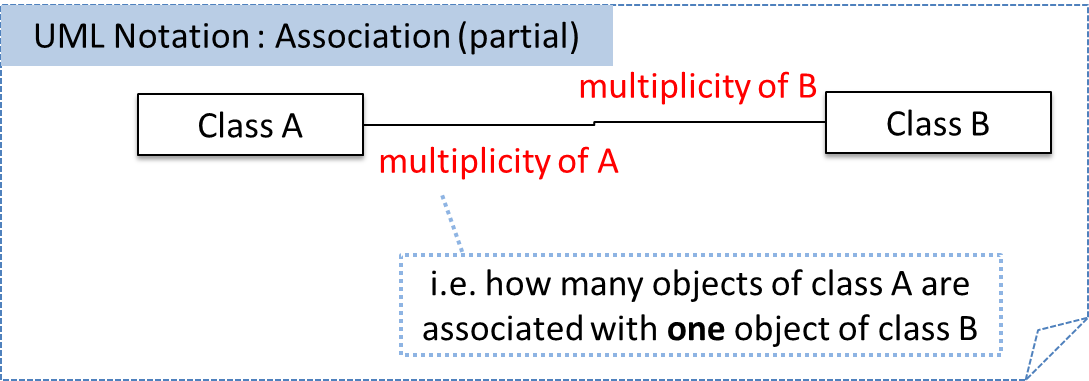

Multiplicity is the aspect of an OOP solution that dictates how many objects take part in each association.

📦 This class diagram does not tell us multiplicities. For exaple, how many Calculator objects can be associated with one Main object? How many Main objects can be associated with one Calculator object? and so on.

We use instance level variables to implement associations.

A normal instance-level variable gives us a 0..1 multiplicity (also called optional associations) because a variable can hold a reference to a single object or null.

class Logic {
    Minefield minefield;
    ...
}

class Minefield {
    ...
}

A variable can be used to implement a 1 multiplicity too (also called compulsory associations).

class Logic {
    ConfigGenerator cg = new ConfigGenerator();
    ...
}

Bi-directional associations require matching variables in both classes.

class Foo {
    Bar bar;
    ...
}

class Bar {
    Foo foo;
    ...
}

To implement other multiplicities, choose a suitable data structure such as Arrays, ArrayLists, HashMaps, Sets, etc.

class Minefield {
    Cell[][] cell;
    ...
}

Dependencies are objects that are not directly linked in the object network can still interact with each other. These are a weaker form of associations we call dependencies.

Dependencies result from interactions between objects that do not result in a long-term link between the said objects.

Example:

class TaxProcessor{
    double rate;

    void addTax(Taxable t){
        t.addTax(rate);
    }
}

The code above results in this dependency.

The code does not indicate an association between the two classes because the TaxProcessor object does not keep the Taxable object (i.e. it’s only a short-term interaction)

A composition is an association that represents a strong whole-part relationship. When the whole is destroyed, parts are destroyed too.

📦 A Board (used for playing board games) consists of Square objects.

Composition also implies that there cannot be cyclical links.

📦 In this ‘sub-folder’ association, a Folder cannot be a sub-folder of itself. If the diamond is removed, it is no longer a composition relationship and technically, allows a folder to be sub-folder of itself.

Composition too is implemented using a normal variable. If correctly implemented, the ‘part’ object will be deleted when the ‘whole’ object is deleted. Ideally, the ‘part’ object may not even be visible to clients of the ‘whole’ object.

Example:

class Car {
    private Engine engine;
  ...
}

Aggregation represents a container-contained relationship. It is a weaker relationship than composition.

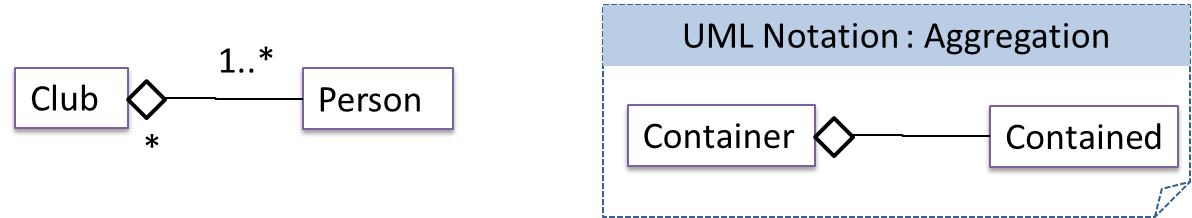

📦 Club acts as a container for Person objects. Person objects can survive without a Club object.

Implementation is similar to that of composition except the containee object can exist even after the container object is deleted.

📦 Example:

class Car {
    Person driver;
    ...
    void drive(Person p) {
        driver = p;
    }
}

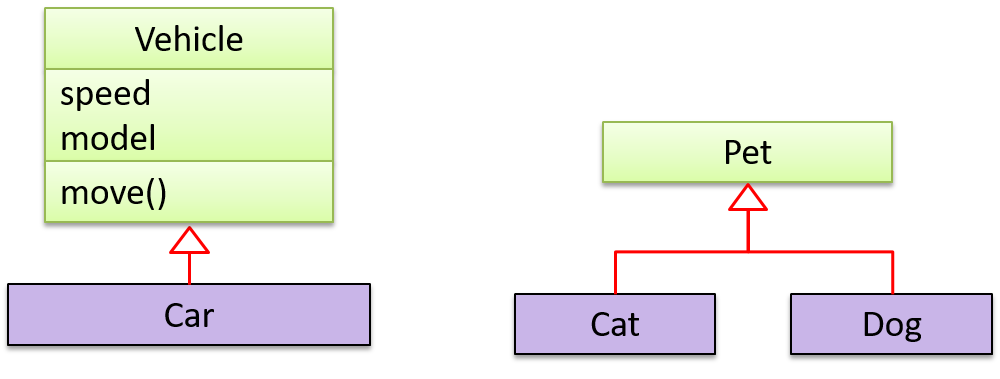

The OOP concept Inheritance allows you to define a new class based on an existing class. For example, you can use inheritance to define an EvaluationReport class based on an existing Report class so that the EvaluationReport class does not have to duplicate code that is already implemented in the Report class.

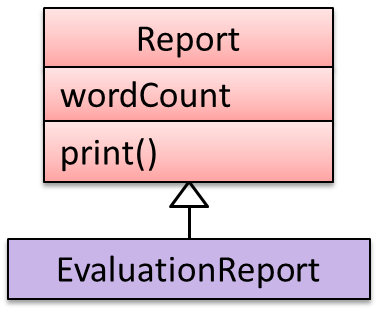

📦 Example: The EvaluationReport inherits the wordCount attribute and the print() method from the base class Report.

• Other names for Base class: Parent class, Super class
• Other names for Derived class: Child class, Sub class, Extended class

A super class is said to be more general than the sub class. Conversely, a sub class is said to be more specialized than the super class.

Applying inheritance on a group of similar classes can result in the common parts among classes being extracted into more general classes.

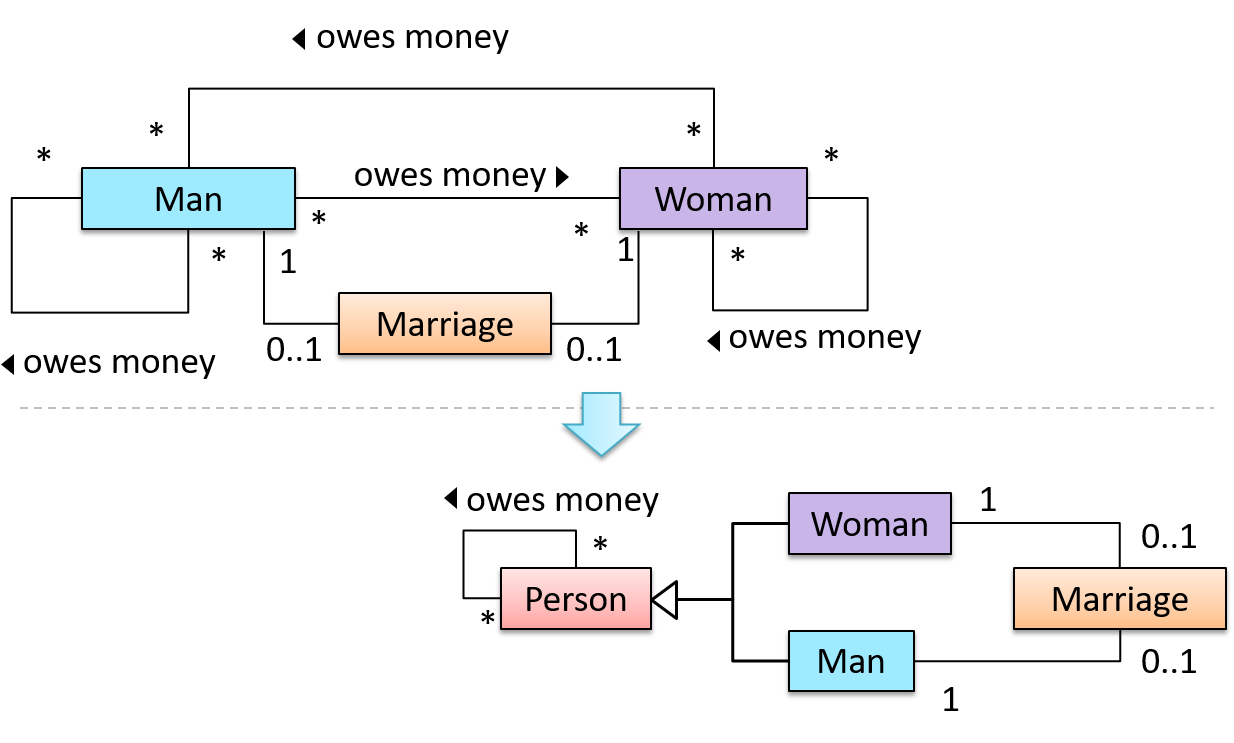

📦 Man and Woman behaves the same way for the 'owes money' association. However, the two classes cannot be simply replaced with a more general class Person because of the need to distinguish between Man and Woman for the ‘marriage’ association. A solution is to add the Person class as a super class and let Man and Woman inherit from Person.

Inheritance implies the derived class can be considered as a sub-type of the base class (and the base class is a super-type of the derived class), resulting in an is a relationship.

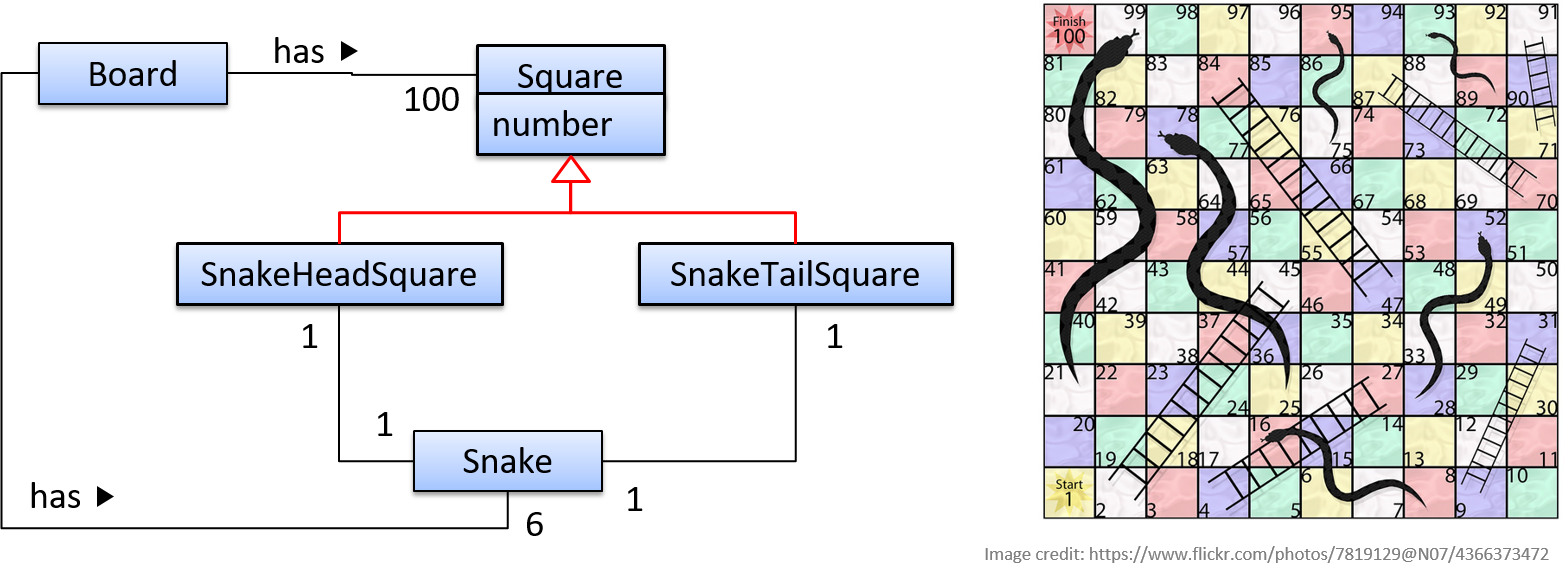

📦 In this class diagrams of a Snakes and Ladders board game,

• SnakeHeadSquare is a Square  (a SnakeHeadSquare is a square in which the head of a snake appears)
• SnakeTailSquare is a Square

Inheritance relationships through a chain of classes can result in inheritance hierarchies (aka inheritance trees).

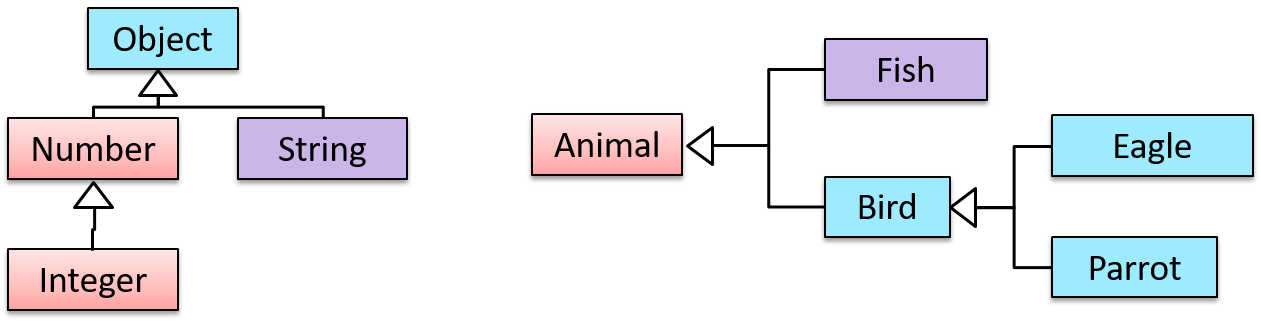

📦 Two inheritance hierarchies/trees are given below. Note that Parrot is a Bird as well as it is an Animal.

Multiple Inheritance is when a class inherits directly from multiple classes. Multiple inheritance is allowed among C++ classes but not among Java classes.

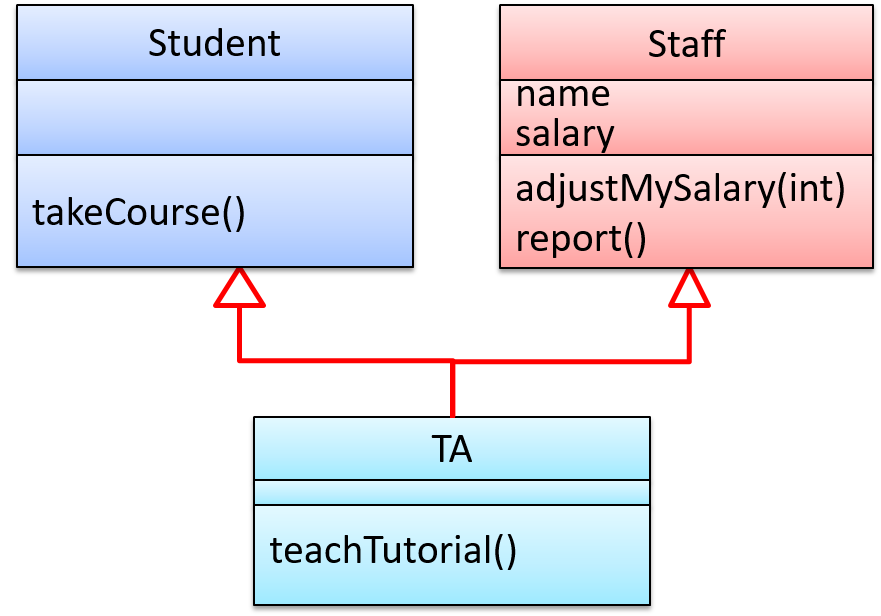

📦 The TA class inherits from the Staff class and the Student.

Method overriding is when a sub-class changes the behavior inherited from the parent class by re-implementing the method. Overridden methods have the same name, same type signature, and same return type.

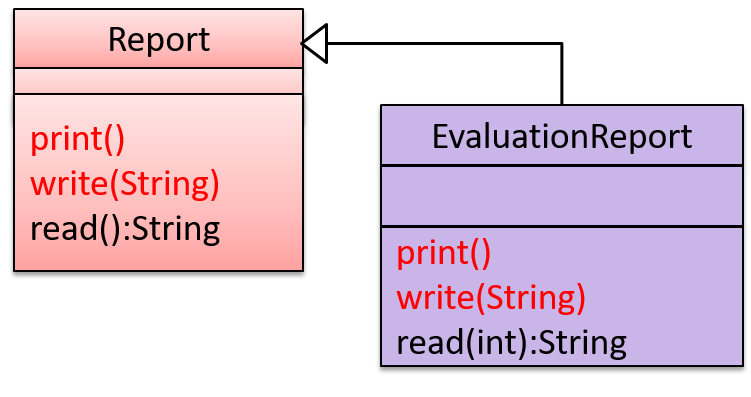

📦 In the diagram below,

• Report#print() method is overridden by EvaluationReport#print() method.
• Report#write(String) method is overridden by EvaluationReport#write(String) method.
• Report#read():String method is NOT overridden by EvaluationReport#read(int):String method.  Reason: the two methods have different signatures; EvaluationReport#read(int):String overloads (rather than overrides) the Report#read():String method.

Design → Object Oriented Programming →

Overloading

Method overloading is when there are multiple methods with the same name but different type signatures. Overloading is used to indicate that multiple operations do similar things but take different parameters.

Type Signature: The type signature of an operation is the type sequence of the parameters. The return type and parameter names are not part of the type signature. However, the parameter order is significant.

Method	Type Signature
int add(int X, int Y)	(int, int)
void add(int A, int B)	(int, int)
void m(int X, double Y)	(int, double)
void m(double X, int Y)	(double, int)

📦 In the class below, the calculate method is overloaded because the two methods have the same name but different type signatures (String) and (int[])

class RatingCalculator{
    void calculate(String matric) { ... }
    void calculate(int[] averages) { ... }
}

To override a method inherited from an ancestor class, simply re-implement the method in the target class.

class Report{

    void print(){
        System.out.println("Printing report");
    }

}

class EvaluationReport extends Report{

    @Override  // this annotation is optional
    void print(){
        System.out.println("Printing evaluation report");
    }

}

class ReportMain{

    public static void main(String[] args){
        Report report = new Report();
        report.print(); // prints "Printing report"

        EvaluationReport evaluationReport = new EvaluationReport();
        evaluationReport.print(); // prints "Printing evaluation report"
    }
}

Method overloading is when there are multiple methods with the same name but different type signatures. Overloading is used to indicate that multiple operations do similar things but take different parameters.

class RatingCalculator{
    void calculate(String matric) { ... }
    void calculate(int[] averages) { ... }
}

An operation can be overloaded inside the same class or in sub/super classes.

class Account {
    Account () {
        ...
    }

    Account (String name, String number, double balance) {
        ...
    }

    void save(int amount){
        ...
    }
}

class SavingAccount extends Account{

    void save(Double amount){
        ...
    }
}

Most programs are written to solve complex problems involving large amounts of intricate details. It is impossible to deal with all these details at the same time. The guiding principle of abstraction stipulates that we capture only details that are relevant to the current perspective or the task at hand.

Ignoring lower level data items and thinking in terms of bigger entities is called data abstraction.

Control abstraction abstracts away details of the actual control flow to focus on tasks at a simplified level.

Abstraction can be applied repeatedly to obtain progressively higher levels of abstractions.

A model is a representation of something else.

A class diagram is a diagram drawn using the UML modelling notation.

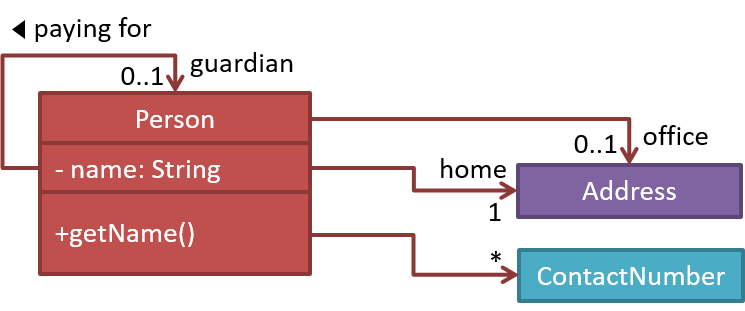

📦 An example class diagram:

A model provides a simpler view of a complex entity because a model captures only a selected aspect. This omission of some aspects implies models are abstractions.

Multiple models of the same entity may be needed to capture it fully.

In software development, models are useful in several ways:

a) To analyze a complex entity related to software development.

b) To communicate information among stakeholders. Models can be used as a visual aid in discussions and documentations.

c) As a blueprint for creating software. Models can be used as instructions for building software.

The following diagram uses the class diagram notation to show the different types of UML diagrams.

Associations among objects/classes play an important role in an OO solution.

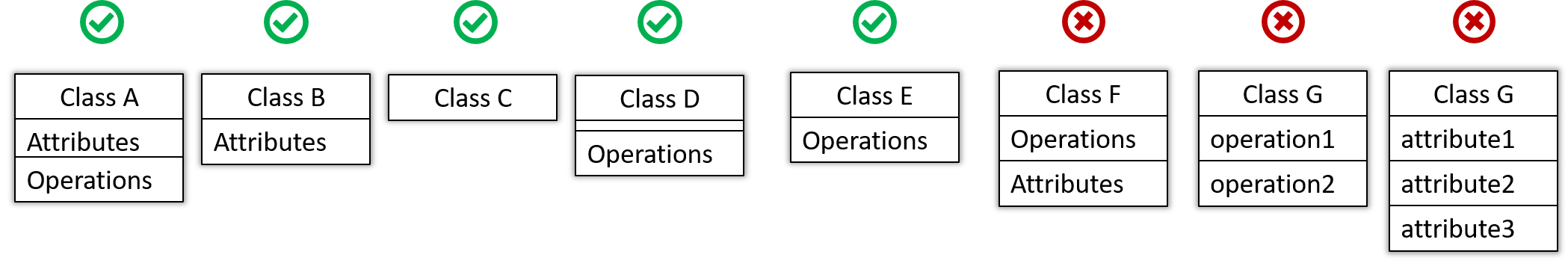

The most basic class diagram is a bunch of classes with some solid lines among them to represent associations, such as this one.

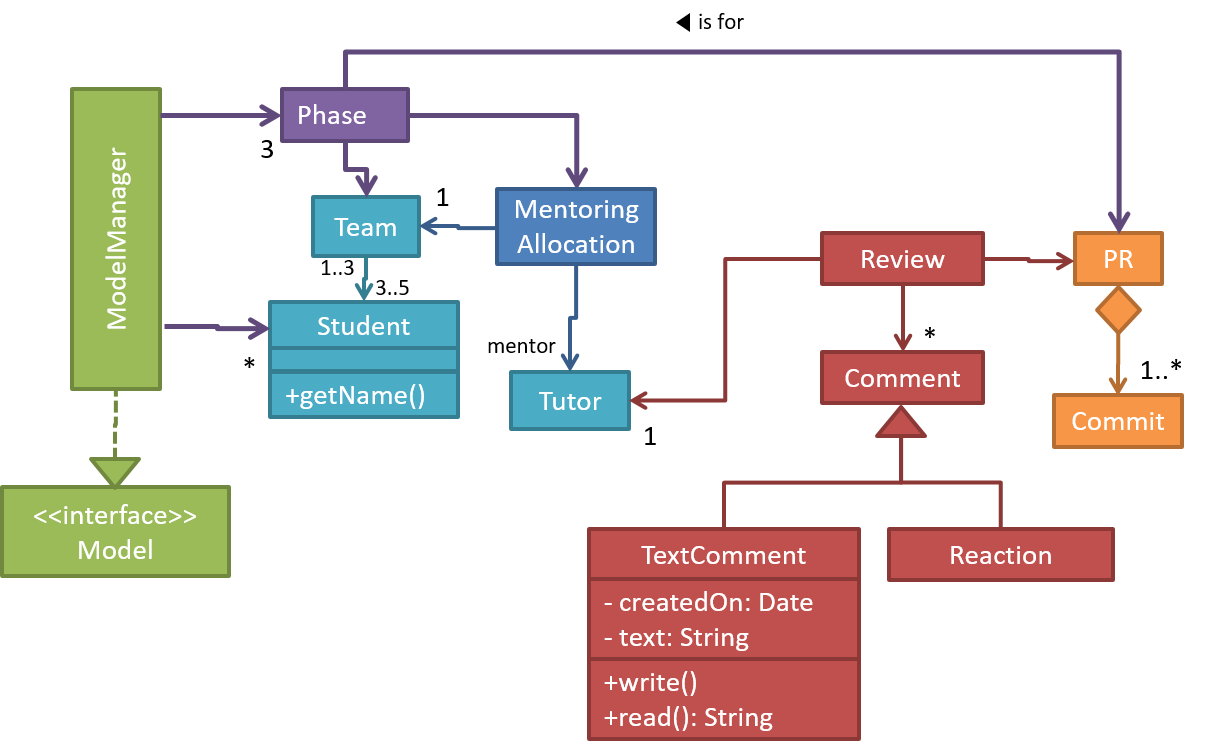

📦 An example class diagram showing associations between classes.

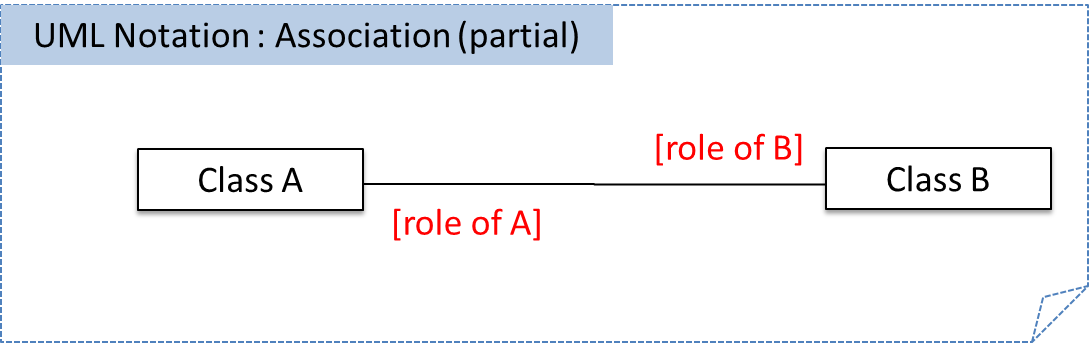

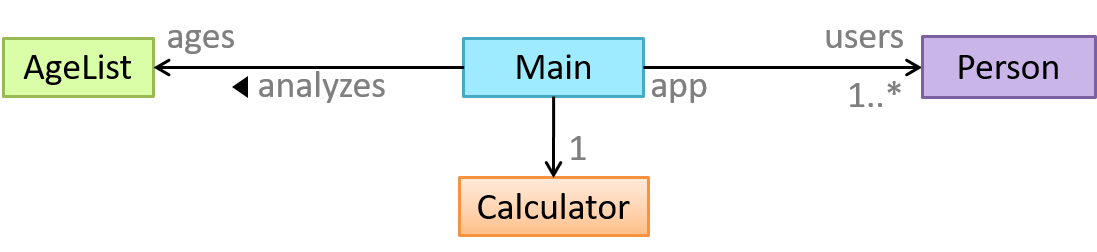

In addition, associations can show additional decorations such as association labels, association roles, multiplicity and navigability to add more information to a class diagram.

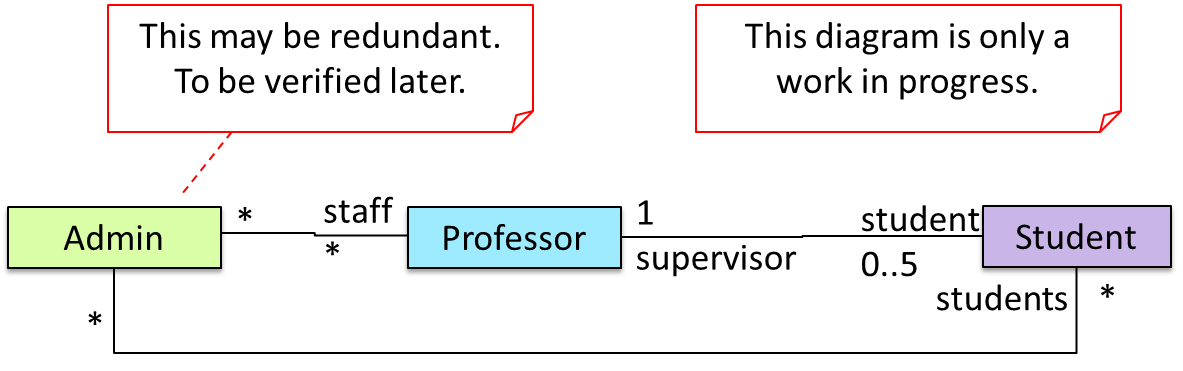

📦 Here is the same class diagram shown earlier but with some additional information included:

The analysis process for identifying objects and object classes is recognized as one of the most difficult areas of object-oriented development. _{--Ian Sommerville, in the book Software Engineering}

Class diagrams can also be used to model objects in the problem domain (i.e. to model how objects actually interact in the real world, before emulating them in the solution). Class diagrams are used to model the problem domain are called conceptual class diagrams or OO domain models (OODMs).

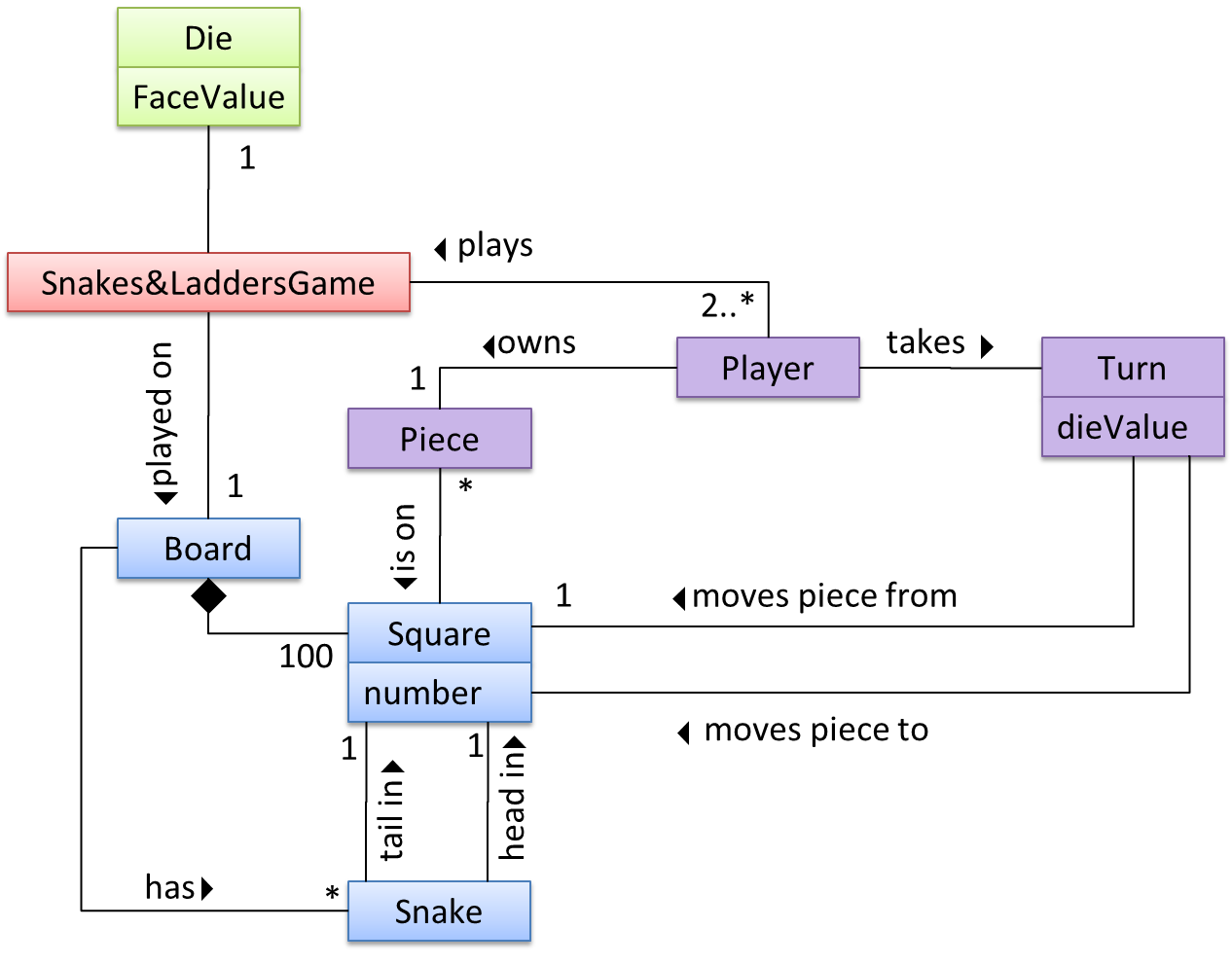

📦 OO domain model of a snakes and ladders game is given below.

Description: Snakes and ladders game is played by two or more players using a board and a die. The board has 100 squares marked 1 to 100. Each player owns one piece. Players take turns to throw the die and advance their piece by the number of squares they earned from the die throw. The board has a number of snakes. If a player’s piece lands on a square with a snake head, the piece is automatically moved to the square containing the snake’s tail. Similarly, a piece can automatically move from a ladder foot to the ladder top. The player whose piece is the first to reach the 100th square wins.

The above OO domain model omits the ladder class for simplicity. It can be included in a similar fashion to the Snake class.

OODMs do not contain solution-specific classes (i.e. classes that are used in the solution domain but do not exist in the problem domain). For example, a class called DatabaseConnection could appear in a class diagram but not usually in an OO domain model because DatabaseConnection is something related to a software solution but not an entity in the problem domain.

OODMs represents the class structure of the problem domain and not their behavior, just like class diagrams. To show behavior, use other diagrams such as sequence diagrams.

OODM notation is similar to class diagram notation but typically omit methods and navigability.

Software projects often involve workflows. Workflows define the flow in which a process or a set of tasks is executed.

Understanding such workflows is important for the success of the software project. UML  activity diagrams (AD) can model workflows.  Flow charts is another type of diagrams that can model workflows. Activity diagrams are the UML equivalent of flow charts.

📦 An example activity diagram _{[source:wikipeida]}:

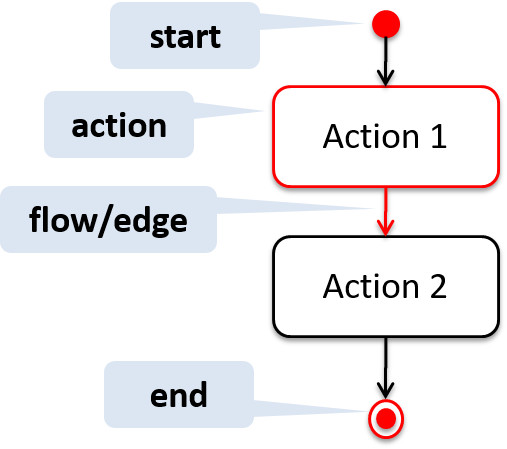

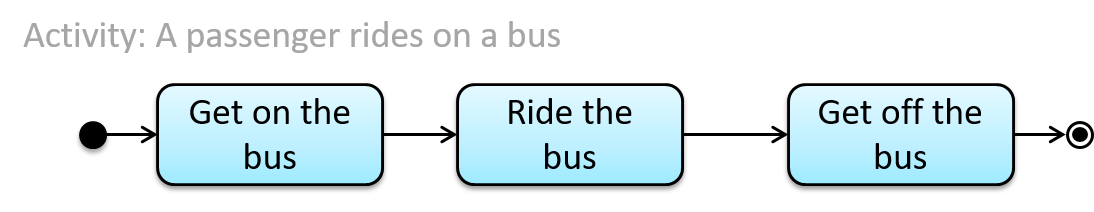

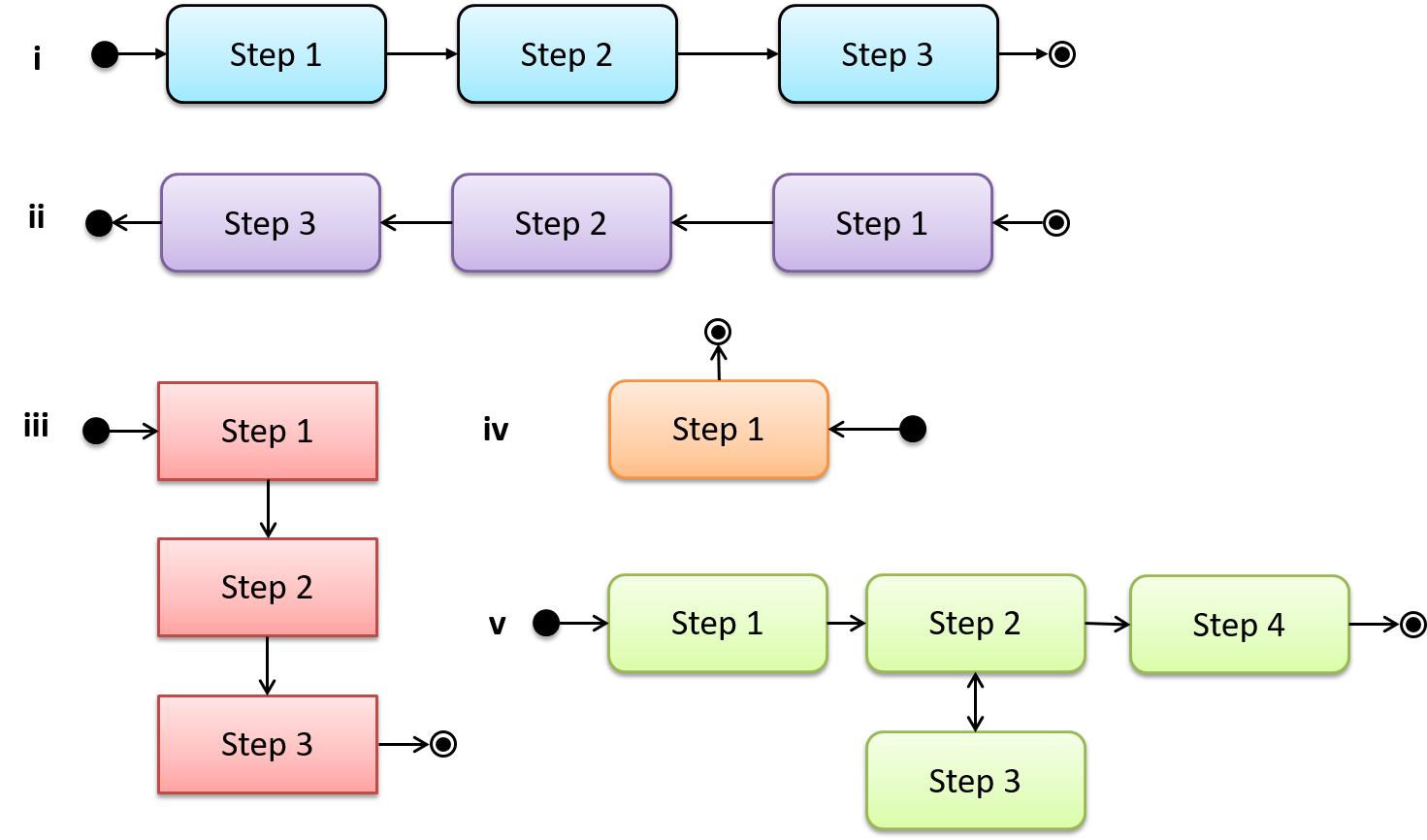

The most basic activity diagram is simply a linear sequence of actions.

Some workflows have alternate paths where only one of the alternate paths is taken based on some condition.

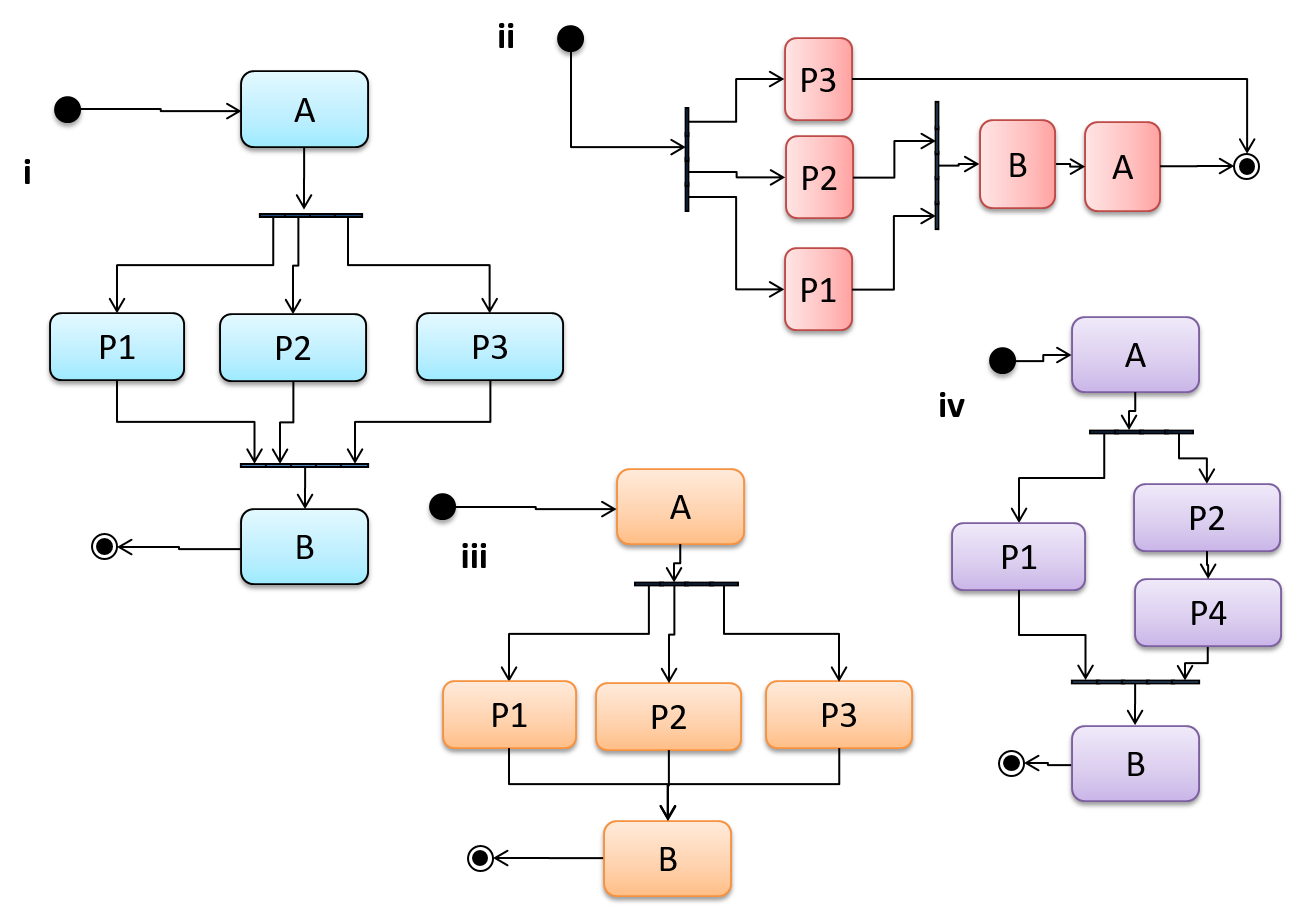

In some workflows, multiple paths happen in parallel.

Use case diagrams model the mapping between features of a system and its user roles.

📦 A simple use case diagram:

Well-written applications include error-handling code that allows them to recover gracefully from unexpected errors. When an error occurs, the application may need to request user intervention, or it may be able to recover on its own. In extreme cases, the application may log the user off or shut down the system. --_(source)

Exceptions are used to deal with 'unusual' but not entirely unexpected situations that the program might encounter at run time.

Most languages allow a method to encapsulate the unusual situation in an Exception object and 'throw'/'raise' that object so that another piece of code can 'catch' it and deal with it. This is especially useful when code segment that encountered the unusual situation does not know how to deal with it.

Exception objects can propagate up the method/function call hierarchy until it is dealt with. Usually, an exception thrown by a method is caught by the caller method. If the called method does not know how to deal with the exception it caught, it can throw/raise the Exception object to its own caller. If none of the callers is prepared to deal with the exception, the exceptions can propagate through the method call stack until it is received by the main method and thrown to the runtime, thus halting the system.

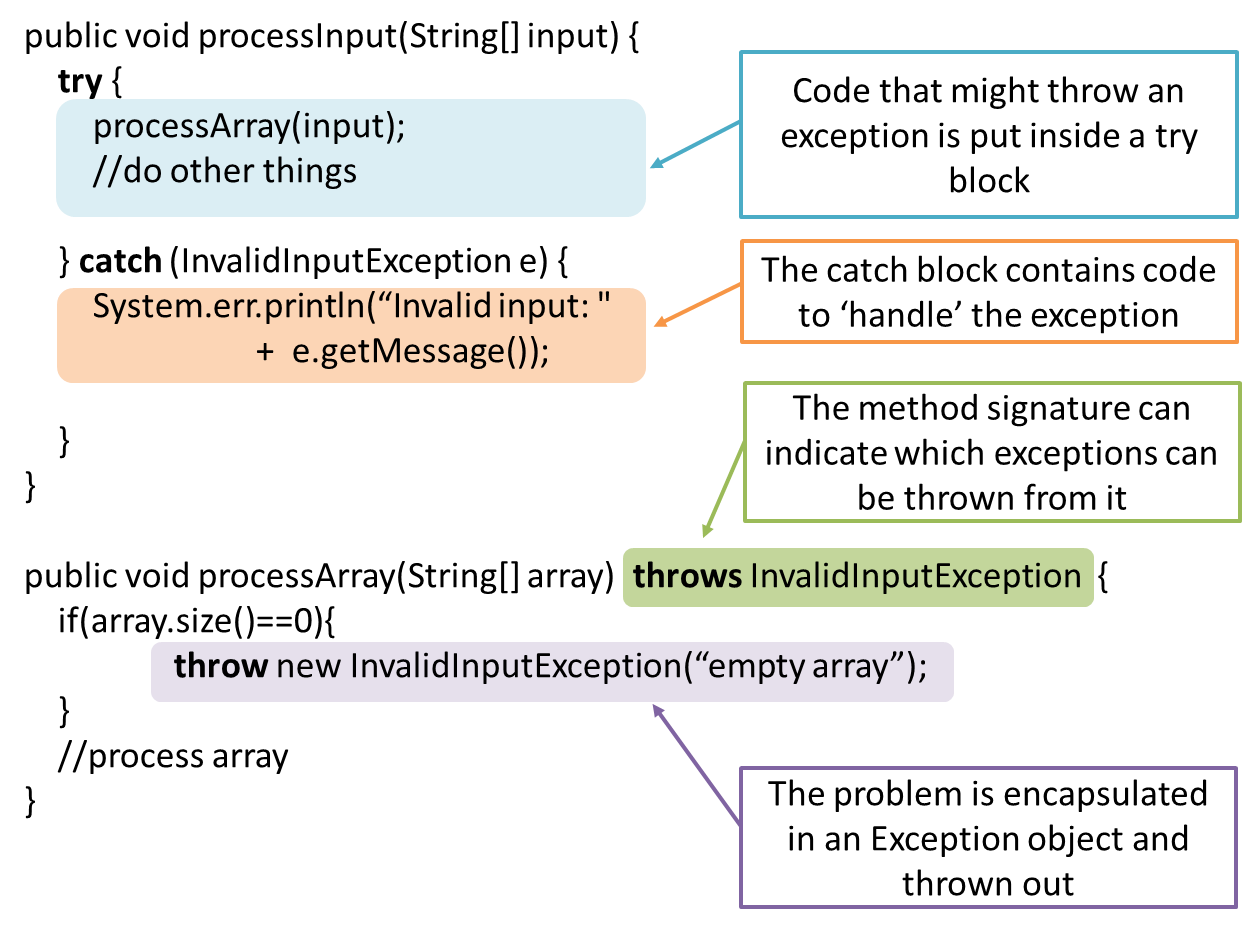

📦 In the code given below, processArray can potentially throw an InvalidInputException. Because of that, processInput method invokes processArray method inside a try{ } block and has a catch{ } block to specify what to do if the exception is actually thrown.

📦 In the code given below, process_array function can potentially raise a ValueError exception. Because of that, process_input function invokes process_array function inside a try clause and has a except clause to specify what to do if the exception is actually raised.

---

Advantages of exception handling in this way:

• The ability to propagate error information through the call stack.
• The separation of code that deals with 'unusual' situations from the code that does the 'usual' work.

In general, use exceptions only for 'unusual' conditions. Use normal return statements to pass control to the caller for conditions that are 'normal'.

Professional software engineers often write code using Integrated Development Environments (IDEs). IDEs support all development-related work within the same tool.

An IDE generally consists of:

• A source code editor that includes features such as syntax coloring, auto-completion, easy code navigation, error highlighting, and code-snippet generation.
• A compiler and/or an interpreter (together with other build automation support) that facilitates the compilation/linking/running/deployment of a program.
• A debugger that allows the developer to execute the program one step at a time to observe the run-time behavior in order to locate bugs.
• Other tools that aid various aspects of coding e.g. support for automated testing, drag-and-drop construction of UI components, version management support, simulation of the target runtime platform, and modeling support.

Examples of popular IDEs:

• Java: Eclipse, Intellij IDEA, NetBeans
• C#, C++: Visual Studio
• Swift: XCode
• Python: PyCharm

Some Web-based IDEs have appeared in recent times too e.g., Amazon's Cloud9 IDE.

Some experienced developers, in particular those with a UNIX background, prefer lightweight yet powerful text editors with scripting capabilities (e.g. Emacs) over heavier IDEs.

Debugging is the process of discovering defects in the program. Here are some approaches to debugging:

• 👎 By inserting temporary print statements: This is an ad-hoc approach in which print statements are inserted in the program to print information relevant to debugging, such as variable values. e.g. Exiting process() method, x is 5.347. This approach is not recommended due to these reasons.

  • Incurs extra effort when inserting and removing the print statements.
  • Unnecessary program modifications increases the risk of introducing errors into the program.
  • These print statements, if not promptly removed, may even appear unexpectedly in the production version.

• 👎 By manually tracing through the code: Otherwise known as ‘eye-balling’, this approach doesn't have the cons of the previous approach, but it too is not recommended (other than as a 'quick try') due to these reasons:

  • It is difficult, time consuming, and error-prone technique.
  • If you didn't spot the error while writing code, you might not spot the error when reading code too.

• 👍 Using a debugger: A debugger tool allows you to pause the execution, then step through one statement at a time while examining the internal state if necessary. Most IDEs come with an inbuilt debugger. This is the recommended approach for debugging.

Always code as if the person who ends up maintaining your code will be a violent psychopath who knows where you live. _{-- Martin Golding}

Production code needs to be of high quality. Given how the world is becoming increasingly dependent of software, poor quality code is something we cannot afford to tolerate.

Programs should be written and polished until they acquire publication quality. _{--Niklaus Wirth}

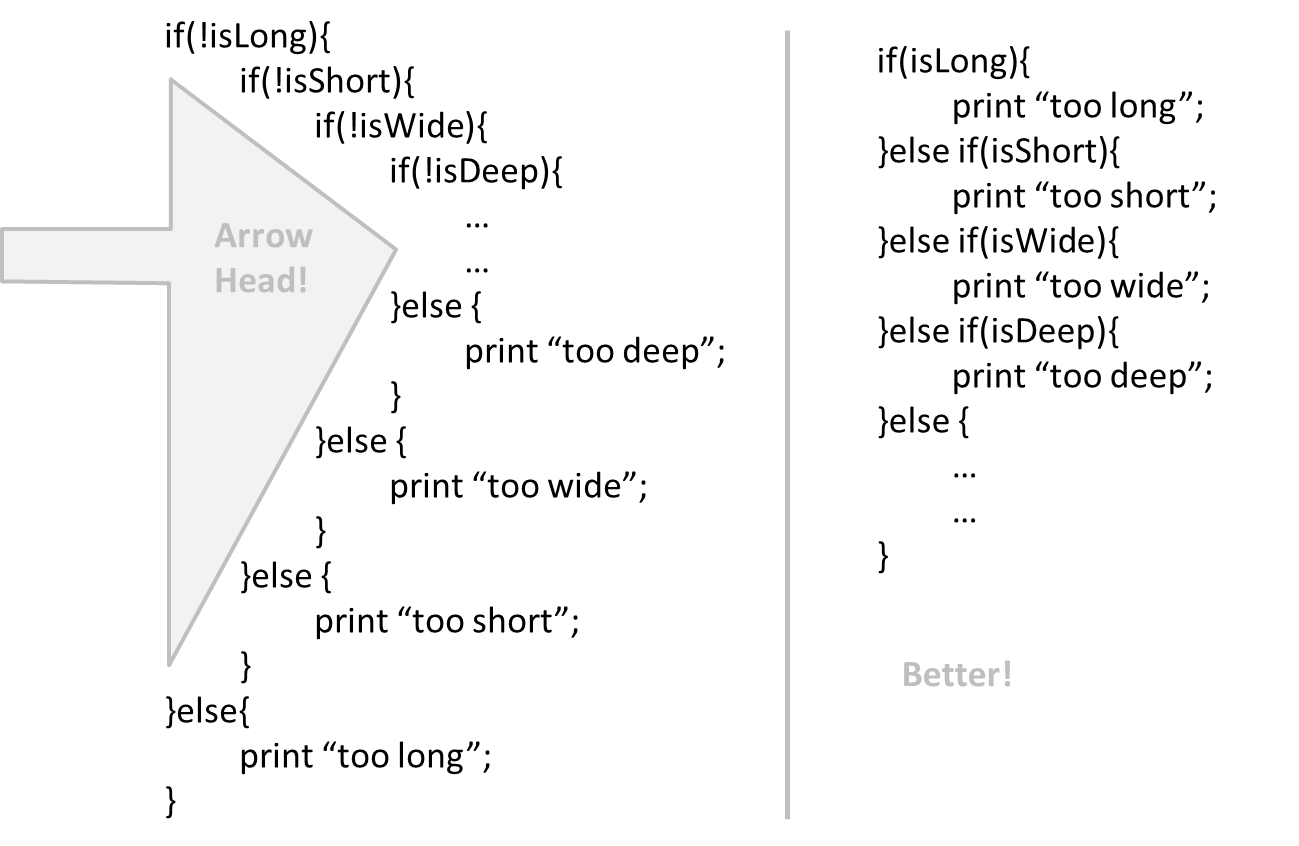

Among various dimensions of code quality, such as run-time efficiency, security, and robustness, one of the most important is understandability. This is because in any non-trivial software project, code needs to be read, understood, and modified by other developers later on. Even if we do not intend to pass the code to someone else, code quality is still important because we all become 'strangers' to our own code someday.

int subsidy() {
    int subsidy;
    if (!age) {
        if (!sub) {
            if (!notFullTime) {
                subsidy = 500;
            } else {
                subsidy = 250;
            }
        } else {
            subsidy = 250;
        }
    } else {
        subsidy = -1;
    }
    return subsidy;
}

int calculateSubsidy() {
    int subsidy;
    if (isSenior) {
        subsidy = REJECT_SENIOR;
    } else if (isAlreadySubsidised) {
        subsidy = SUBSIDISED_SUBSIDY;
    } else if (isPartTime) {
        subsidy = FULLTIME_SUBSIDY * RATIO;
    } else {
        subsidy = FULLTIME_SUBSIDY;
    }
    return subsidy;
}

One essential way to improve code quality is to follow a consistent style. That is why software engineers follow a strict coding standard (aka style guide).

The aim of a coding standard is to make the entire code base look like it was written by one person. A coding standard is usually specific to a programming language and specifies guidelines such as the location of opening and closing braces, indentation styles and naming styles (e.g. whether to use Hungarian style, Pascal casing, Camel casing, etc.). It is important that the whole team/company use the same coding standard and that standard is not generally inconsistent with typical industry practices. If a company's coding standards is very different from what is used typically in the industry, new recruits will take longer to get used to the company's coding style.

Go through the provided Java coding standard and learn the basic style rules.

Proper naming improves the readability. It also reduces bugs caused by ambiguities regarding the intent of a variable or a method.

There are only two hard things in Computer Science: cache invalidation and naming things. _{-- Phil Karlton}

Good code is its own best documentation. As you’re about to add a comment, ask yourself, ‘How can I improve the code so that this comment isn’t needed?’ Improve the code and then document it to make it even clearer. _{--Steve McConnell, Author of Clean Code}

Some think commenting heavily increases the 'code quality'. This is not so. Avoid writing comments to explain bad code. Improve the code to make it self-explanatory.

The first version of the code you write may not be of production quality. It is OK to first concentrate on making the code work, rather than worry over the quality of the code, as long as you improve the quality later. This process of improving a program's internal structure in small steps without modifying its external behavior is called refactoring.

• Refactoring is not rewriting: Discarding poorly-written code entirely and re-writing it from scratch is not refactoring because refactoring needs to be done in small steps.
• Refactoring is not bug fixing: By definition, refactoring is different from bug fixing or any other modifications that alter the external behavior (e.g. adding a feature) of the component in concern.

Given below are two common refactorings (taken from refactoring-catalog ).

if (isSpecialDeal()) {
    total = price * 0.95;
    send();
} else {
    total = price * 0.98;
    send();
}

if (isSpecialDeal()){
    total = price * 0.95;
} else {
    total = price * 0.98;
}
send();

void printOwing() {
    printBanner();

    //print details
    System.out.println("name:	" + name);
    System.out.println("amount	" + getOutstanding());
}

void printOwing() {
    printBanner();
    printDetails(getOutstanding());
}

void printDetails (double outstanding) {
    System.out.println("name:	" + name);
    System.out.println("amount	" + outstanding);
}

Reuse is a major theme in software engineering practices. By reusing tried-and-tested components, the robustness of a new software system can be enhanced while reducing the manpower and time requirement. Reusable components come in many forms; it can be reusing a piece of code, a subsystem, or a whole software.

While you may be tempted to use many libraries/frameworks/platform that seem to crop up on a regular basis and promise to bring great benefits, note that there are costs associated with reuse. Here are some:

• The reused code may be an overkill (think using a sledgehammer to crack a nut) increasing the size of, or/and degrading the performance of, your software.
• The reused software may not be mature/stable enough to be used in an important product. That means the software can change drastically and rapidly, possibly in ways that break your software.
• Non-mature software has the risk of dying off as fast as they emerged, leaving you with a dependency that is no longer maintained.
• The license of the reused software (or its dependencies) restrict how you can use/develop your software.
• The reused software might have bugs, missing features, or security vulnerabilities that are important to your product but not so important to the maintainers of that software, which means those flaws will not get fixed as fast as you need them to.
• Malicious code can sneak into your product via compromised dependencies.

An Application Programming Interface (API) specifies the interface through which other programs can interact with a software component. It is a contract between the component and its clients.

When developing large systems, if you define the API of each components early, the development team can develop the components in parallel  because the future behavior of the other components are now more predictable.

A library is a collection of modular code that is general and can be used by other programs.

These are the typical steps required to use a library.

1. Read the documentation to confirm that its functionality fits your needs
2. Check the license to confirm that it allows reuse in the way you plan to reuse it. For example, some libraries might allow non-commercial use only.
3. Download the library and make it accessible to your project. Alternatively, you can configure your dependency management tool to do it for you.
4. Call the library API from your code where you need to use the library functionality.

The overall structure and execution flow of a specific category of software systems can be very similar. The similarity is an opportunity to reuse at a high scale.

A software framework is a reusable implementation of a software (or part thereof) providing generic functionality that can be selectively customized to produce a specific application.

Some frameworks provide a complete implementation of a default behavior which makes them immediately usable.

A framework facilitates the adaptation and customization of some desired functionality.

Some frameworks cover only a specific components or an aspect.

Although both frameworks and libraries are reuse mechanisms, there are notable differences:

• Libraries are meant to be used ‘as is’ while frameworks are meant to be customized/extended.  e.g., writing plugins for Eclipse so that it can be used as an IDE for different languages (C++, PHP, etc.), adding modules and themes to Drupal, and adding test cases to JUnit.

• Your code calls the library code while the framework code calls your code. Frameworks use a technique called inversion of control, aka the “Hollywood principle” (i.e. don’t call us, we’ll call you!). That is, you write code that will be called by the framework,  e.g. writing test methods that will be called by the JUnit framework. In the case of libraries, your code calls libraries.

A platform provides a runtime environment for applications. A platform is often bundled with various libraries, tools, frameworks, and technologies in addition to a runtime environment but the defining characteristic of a software platform is the presence of a runtime environment.

Cloud computing is the delivery of computing as a service over the network, rather than a product running on a local machine. This means the actual hardware and software is located at a remote location, typically, at a large server farm, while users access them over the network. Maintenance of the hardware and software is managed by the cloud provider while users typically pay for only the amount of services they use. This model is similar to the consumption of electricity; the power company manages the power plant, while the consumers pay them only for the electricity used. The cloud computing model optimizes hardware and software utilization and reduces the cost to consumers. Furthermore, users can scale up/down their utilization at will without having to upgrade their hardware and software. The traditional non-cloud model of computing is similar to everyone buying their own generators to create electricity for their own use.

_{source:https://commons.wikimedia.org}

Cloud computing can deliver computing services at three levels:

1. Infrastructure as a service (IaaS) delivers computer infrastructure as a service. For example, a user can deploy virtual servers on the cloud instead of buying physical hardware and installing server software on them. Another example would be a customer using storage space on the cloud for off-site storage of data.  Rackspace is an example of an IaaS cloud provider. Amazon Elastic Compute Cloud (Amazon EC2) is another one.

2. Platform as a service (PaaS) provides a platform on which developers can build applications. Developers do not have to worry about infrastructure issues such as deploying servers or load balancing as is required when using IaaS. Those aspects are automatically taken care of by the platform. The price to pay is reduced flexibility; applications written on PaaS are limited to facilities provided by the platform.  A PaaS example is the Google App Engine where developers can build applications using Java, Python, PHP, or Go whereas Amazon EC2 allows users to deploy application written in any language on their virtual servers.

3. Software as a service (SaaS) allows applications to be accessed over the network instead of installing them on a local machine.  For example, Google Docs is an SaaS word processing software, while Microsoft Word is a traditional word processing software.

Developer-to-developer documentation can be in one of two forms:

1. Documentation for developer-as-user: Software components are written by developers and reused by other developers, which means there is a need to document how such components are to be used. Such documentation can take several forms:
   • API documentation: APIs expose functionality in small-sized, independent and easy-to-use chunks, each of which can be documented systematically.
   • Tutorial-style instructional documentation: In addition to explaining functions/methods independently, some higher-level explanations of how to use an API can be useful.

2. Documentation for developer-as-maintainer: There is a need to document how a system or a component is designed, implemented and tested so that other developers can maintain and evolve the code. Writing documentation of this type is harder because of the need to explain complex internal details. However, given that readers of this type of documentation usually have access to the source code itself, only some information need to be included in the documentation, as code (and code comments) can also serve as a complementary source of information.

Technical documents exist to help others understand technical details. Therefore, it is not enough for the documentation to be accurate and comprehensive, it should also be comprehensible too.

Here are some tips on writing effective documentation.

• Use plenty of diagrams: It is not enough to explain something in words; complement it with visual illustrations (e.g. a UML diagram).
• Use plenty of examples: When explaining algorithms, show a running example to illustrate each step of the algorithm, in parallel to worded explanations.
• Use simple and direct explanations: Convoluted explanations and fancy words will annoy readers. Avoid long sentences.
• Get rid of statements that do not add value: For example, 'We made sure our system works perfectly' (who didn't?), 'Component X has its own responsibilities' (of course it has!).
• It is not a good idea to have separate sections for each type of artifact, such as 'use cases', 'sequence diagrams', 'activity diagrams', etc. Such a structure, coupled with the indiscriminate inclusion of diagrams without justifying their need, indicates a failure to understand the purpose of documentation. Include diagrams when they are needed to explain something. If you want to provide additional diagrams for completeness' sake, include them in the appendix as a reference.

Aim for 'just enough' developer documentation.

• Writing and maintaining developer documents is an overhead. You should try to minimize that overhead.
• If the readers are developers who will eventually read the code, the documentation should complement the code and should provide only just enough guidance to get started.

Anything that is already clear in the code need not be described in words. Instead, focus on providing higher level information that is not readily visible in the code or comments.

Refrain from duplicating chunks or text. When describing several similar algorithms/designs/APIs, etc., do not simply duplicate large chunks of text. Instead, describe the similarity in one place and emphasize only the differences in other places. It is very annoying to see pages and pages of similar text without any indication as to how they differ from each other.

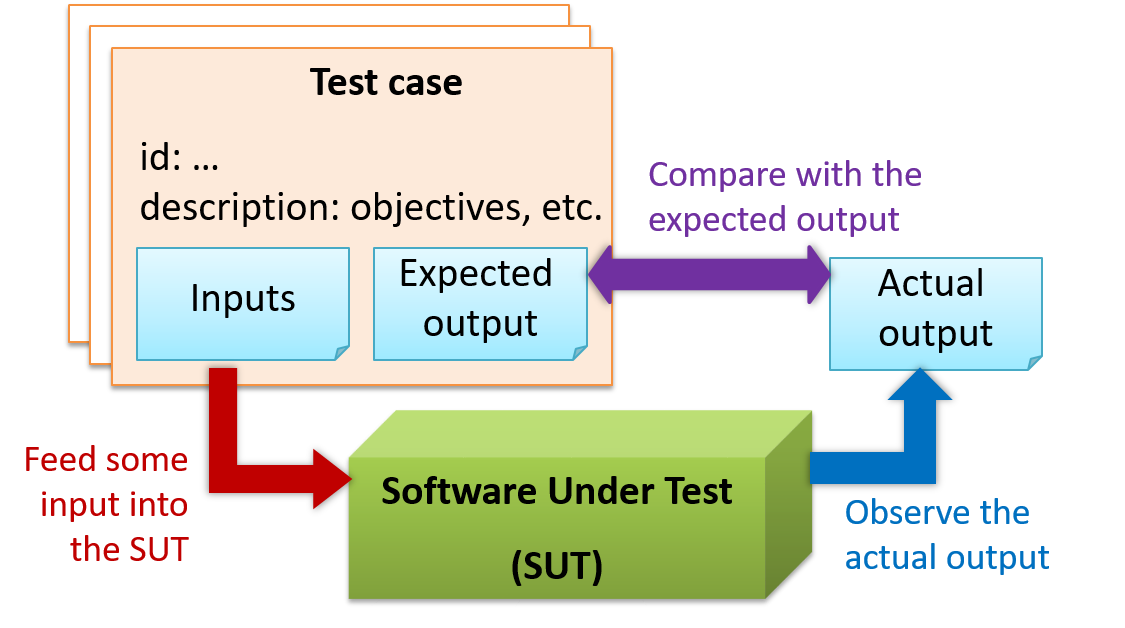

When testing, we execute a set of test cases. A test case specifies how to perform a test. At a minimum, it specifies the input to the software under test (SUT) and the expected behavior.

Test cases can be determined based on the specification, reviewing similar existing systems, or comparing to the past behavior of the SUT.

For each test case we do the following:

1. Feed the input to the SUT
2. Observe the actual output
3. Compare actual output with the expected output

A test case failure is a mismatch between the expected behavior and the actual behavior. A failure is caused by a defect (or a bug).

A simple way to semi-automate testing of a CLI(Command Line Interface) app is by using input/output re-direction.

• First, we feed the app with a sequence of test inputs that is stored in a file while redirecting the output to another file.
• Next, we compare the actual output file with another file containing the expected output.

Let us assume we are testing a CLI app called AddressBook. Here are the detailed steps:

1. Store the test input in the text file input.txt.

   add Valid Name p/12345 valid@email.butNoPrefix
   add Valid Name 12345 e/valid@email.butPhonePrefixMissing


2. Store the output we expect from the SUT in another text file expected.txt.

   Command: || [add Valid Name p/12345 valid@email.butNoPrefix]
   Invalid command format: add

   Command: || [add Valid Name 12345 e/valid@email.butPhonePrefixMissing]
   Invalid command format: add


3. Run the program as given below, which will redirect the text in input.txt as the input to AddressBook and similarly, will redirect the output of AddressBook to a text file output.txt. Note that this does not require any code changes to AddressBook.

   java AddressBook < input.txt > output.txt


   • 💡 The way to run a CLI program differs based on the language.
     e.g., In Python, assuming the code is in AddressBook.py file, use the command
     python AddressBook.py < input.txt > output.txt

   • 💡 If you are using Windows, use a normal command window to run the app, not a Power Shell window.

   A CLI program takes input from the keyboard and outputs to the console. That is because those two are default input and output streams, respectively. But you can change that behavior using < and > operators. For example, if you run AddressBook in a command window, the output will be shown in the console, but if you run it like this,

   java AddressBook > output.txt


   the Operating System then creates a file output.txt and stores the output in that file instead of displaying it in the console. No file I/O coding is required. Similarly, adding < input.txt (or any other filename) makes the OS redirect the contents of the file as input to the program, as if the user typed the content of the file one line at a time.

   📎 Resources:

   • Using command redirection operators in Windows

4. Next, we compare output.txt with the expected.txt. This can be done using a utility such as Windows FC (i.e. File Compare) command, Unix diff command, or a GUI tool such as WinMerge.

   FC output.txt expected.txt


Note that the above technique is only suitable when testing CLI apps, and only if the exact output can be predetermined. If the output varies from one run to the other (e.g. it contains a time stamp), this technique will not work. In those cases we need more sophisticated ways of automating tests.

When we modify a system, the modification may result in some unintended and undesirable effects on the system. Such an effect is called a regression.

Regression testing is re-testing the software to detect regressions. Note that to detect regressions, we need to retest all related components, even if they were tested before.

Regression testing is more effective when it is done frequently, after each small change. However, doing so can be prohibitively expensive if testing is done manually. Hence, regression testing is more practical when it is automated.

Unit testing : testing individual units (methods, classes, subsystems, ...) to ensure each piece works correctly.

In OOP code, it is common to write one or more unit tests for each public method of a class.

class Foo{
    String read(){
        //...
    }

    void write(String input){
        //...
    }

}

class FooTest{

    @Test
    void read(){
        //a unit test for Foo#read() method
    }

    @Test
    void write_emptyInput_exceptionThrown(){
        //a unit tests for Foo#write(String) method
    }

    @Test
    void write_normalInput_writtenCorrectly(){
        //another unit tests for Foo#write(String) method
    }
}

Integration testing : testing whether different parts of the software work together (i.e. integrates) as expected. Integration tests aim to discover bugs in the 'glue code' related to how components interact with each other. These bugs are often the result of misunderstanding of what the parts are supposed to do vs what the parts are actually doing.

System testing: take the whole system and test it against the system specification.

System testing is typically done by a testing team (also called a QA team).

System test cases are based on the specified external behavior of the system. Sometimes, system tests go beyond the bounds defined in the specification. This is useful when testing that the system fails 'gracefully' having pushed beyond its limits.

Test case: load a web page that is too big
* Input: load a web page containing more than 5000 characters.
* Expected behavior: abort the loading of the page and show a meaningful error message.

System testing includes testing against non-functional requirements too. Here are some examples.

• Performance testing – to ensure the system responds quickly.
• Load testing (also called stress testing or scalability testing) – to ensure the system can work under heavy load.
• Security testing – to test how secure the system is.
• Compatibility testing, interoperability testing – to check whether the system can work with other systems.
• Usability testing – to test how easy it is to use the system.
• Portability testing – to test whether the system works on different platforms.

Alpha testing is performed by the users, under controlled conditions set by the software development team.

Beta testing is performed by a selected subset of target users of the system in their natural work setting.

An open beta release is the release of not-yet-production-quality-but-almost-there software to the general population. For example, Google’s Gmail was in 'beta' for many years before the label was finally removed.

Developer testing is the testing done by the developers themselves as opposed to professional testers or end-users.

Delaying testing until the full product is complete has a number of disadvantages:

• Locating the cause of such a test case failure is difficult due to a large search space; in a large system, the search space could be millions of lines of code, written by hundreds of developers! The failure may also be due to multiple inter-related bugs.
• Fixing a bug found during such testing could result in major rework, especially if the bug originated during the design or during requirements specification (i.e. a faulty design or faulty requirements).
• One bug might 'hide' other bugs, which could emerge only after the first bug is fixed.
• The delivery may have to be delayed if too many bugs were found during testing.

Therefore, it is better to do early testing, as hinted by the popular rule of thumb given below, also illustrated by the graph below it.

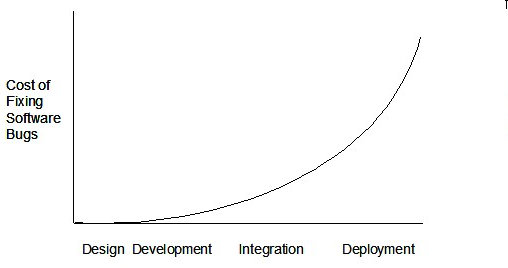

The earlier a bug is found, the easier and cheaper to have it fixed.

Such early testing of partially developed software is usually, and by necessity, done by the developers themselves i.e. developer testing.

Acceptance testing (aka User Acceptance Testing (UAT)): test the delivered system to ensure it meets the user requirements.

Acceptance tests give an assurance to the customer that the system does what it is intended to do. Acceptance test cases are often defined at the beginning of the project, usually based on the use case specification. Successful completion of UAT is often a prerequisite to the project sign-off.

Acceptance testing comes after system testing. Similar to system testing, acceptance testing involves testing the whole system.

Some differences between system testing and acceptance testing:

Note: negative test cases: cases where the SUT is not expected to work normally e.g. incorrect inputs; positive test cases: cases where the SUT is expected to work normally

Passing system tests does not necessarily mean passing acceptance testing. Some examples:

• The system might work on the testbed environments but might not work the same way in the deployment environment, due to subtle differences between the two environments.
• The system might conform to the system specification but could fail to solve the problem it was supposed to solve for the user, due to flaws in the system design.

Except for trivial SUTs, exhaustive testing is not practical because such testing often requires a massive/infinite number of test cases.

Program testing can be used to show the presence of bugs, but never to show their absence!
_{--Edsger Dijkstra}

Test case design can be of three types, based on how much of SUT internal details are considered when designing test cases:

• Black-box (aka specification-based or responsibility-based) approach: test cases are designed exclusively based on the SUT’s specified external behavior.

• White-box (aka glass-box or structured or implementation-based) approach: test cases are designed based on what is known about the SUT’s implementation, i.e. the code.

• Gray-box approach: test case design uses some important information about the implementation. For example, if the implementation of a sort operation uses different algorithms to sort lists shorter than 1000 items and lists longer than 1000 items, more meaningful test cases can then be added to verify the correctness of both algorithms.

Consider the testing of the following operation.

It is inefficient and impractical to test this method for all integer values [-MIN_INT to MAX_INT]. Fortunately, there is no need to test all possible input values. For example, if the input value 233 failed to produce the correct result, the input 234 is likely to fail too; there is no need to test both.

In general, most SUTs do not treat each input in a unique way. Instead, they process all possible inputs in a small number of distinct ways. That means a range of inputs is treated the same way inside the SUT. Equivalence partitioning (EP) is a test case design technique that uses the above observation to improve the E&E of testing.

By dividing possible inputs into equivalence partitions we can,

• avoid testing too many inputs from one partition. Testing too many inputs from the same partition is unlikely to find new bugs. This increases the efficiency of testing by reducing redundant test cases.
• ensure all partitions are tested. Missing partitions can result in bugs going unnoticed. This increases the effectiveness of testing by increasing the chance of finding bugs.

Equivalence partitions (EPs) are usually derived from the specifications of the SUT.

When the SUT has multiple inputs, you should identify EPs for each input.

An EP may not have adjacent values.

Some inputs have only a small number of possible values and a potentially unique behavior for each value. In those cases we have to consider each value as a partition by itself.

Note that the EP technique is merely a heuristic and not an exact science, especially when applied manually (as opposed to using an automated program analysis tool to derive EPs). The partitions derived depend on how one ‘speculates’ the SUT to behave internally. Applying EP under a glass-box or gray-box approach can yield more precise partitions.

When deciding EPs of OOP methods, we need to identify EPs of all data participants that can potentially influence the behaviour of the method, such as,

• the target object of the method call
• input parameters of the method call
• other data/objects accessed by the method such as global variables. This category may not be applicable if using the black box approach (because the test case designer using the black box approach will not know how the method is implemented)

/**
 * Adds o to the top of the stack if the stack is not full.
 * @throws MutabilityException if the global flag FREEZE==true.
 * @throws InvalidValueException if  o is null.
 * @return true if the push operation was a success.
 */
boolean push(Object o) {
    ...
}

Boundary Value Analysis (BVA) is test case design heuristic that is based on the observation that bugs often result from incorrect handling of boundaries of equivalence partitions. This is not surprising, as the end points of the boundary are often used in branching instructions etc. where the programmer can make mistakes.

BVA suggests that when picking test inputs from an equivalence partition, values near boundaries (i.e. boundary values) are more likely to find bugs.

Boundary values are sometimes called corner cases.

Typically, we choose three values around the boundary to test: one value from the boundary, one value just below the boundary, and one value just above the boundary. The number of values to pick depends on other factors, such as the cost of each test case.

Software Quality Assurance (QA) is the process of ensuring that the software being built has the required levels of quality.

While testing is the most common activity used in QA, there are other complementary techniques such as static analysis, code reviews, and formal verification.

Quality Assurance = Validation + Verification

QA involves checking two aspects:

1. Validation: are we building the right system i.e., are the requirements correct?
2. Verification: are we building the system right i.e., are the requirements implemented correctly?

Whether something belongs under validation or verification is not that important. What is more important is both are done, instead of limiting to verification (i.e., remember that the requirements can be wrong too).

Code review is the systematic examination code with the intention of finding where the code can be improved.

Reviews can be done in various forms. Some examples below:

• In pair programming

  • As pair programming involves two programmers working on the same code at the same time, there is an implicit review of the code by the other member of the pair.

• Pull Request reviews

  • Project Management Platforms such as GitHub and BitBucket allows the new code to be proposed as Pull Requests and provides the ability for others to review the code in the PR.

• Formal inspections

  • Inspections involve a group of people systematically examining a project artifacts to discover defects. Members of the inspection team play various roles during the process, such as:

    • the author - the creator of the artifact
    • the moderator - the planner and executor of the inspection meeting
    • the secretary - the recorder of the findings of the inspection
    • the inspector/reviewer - the one who inspects/reviews the artifact.

Advantages of code reviews over testing:

• It can detect functionality defects as well as other problems such as coding standard violations.
• Can verify non-code artifacts and incomplete code
• Do not require test drivers or stubs.

Disadvantages:

• It is a manual process and therefore, error prone.

Static analysis of code can find useful information such unused variables, unhandled exceptions, style errors, and statistics. Most modern IDEs come with some inbuilt static analysis capabilities. For example, an IDE can highlight unused variables as you type the code into the editor.

Higher-end static analyzer tools can perform for more complex analysis such as locating potential bugs, memory leaks, inefficient code structures etc.

Linters are a subset of static analyzers that specifically aim to locate areas where the code can be made 'cleaner'.

Formal verification uses mathematical techniques to prove the correctness of a program.

Advantages:

• Formal verification can be used to prove the absence of errors. In contrast, testing can only prove the presence of error, not their absence.

Disadvantages:

• It only proves the compliance with the specification, but not the actual utility of the software.
• It requires highly specialized notations and knowledge which makes it an expensive technique to administer. Therefore, formal verifications are more commonly used in safety-critical software such as flight control systems.

A Work Breakdown Structure (WBS) depicts information about tasks and their details in terms of subtasks. When managing projects it is useful to divide the total work into smaller, well-defined units. Relatively complex tasks can be further split into subtasks. In complex projects a WBS can also include prerequisite tasks and effort estimates for each task.

The effort is traditionally measured in man hour/day/month i.e. work that can be done by one person in one hour/day/month. The Task ID is a label for easy reference to a task. Simple labeling is suitable for a small project, while a more informative labeling system can be adopted for bigger projects.

All tasks should be well-defined. In particular, it should be clear as to when the task will be considered done.

A milestone is the end of a stage which indicates a significant progress. We should take into account dependencies and priorities when deciding on the features to be delivered at a certain milestone.

In some projects, it is not practical to have a very detailed plan for the whole project due to the uncertainty and unavailability of required information. In such cases, we can use a high-level plan for the whole project and a detailed plan for the next few milestones.

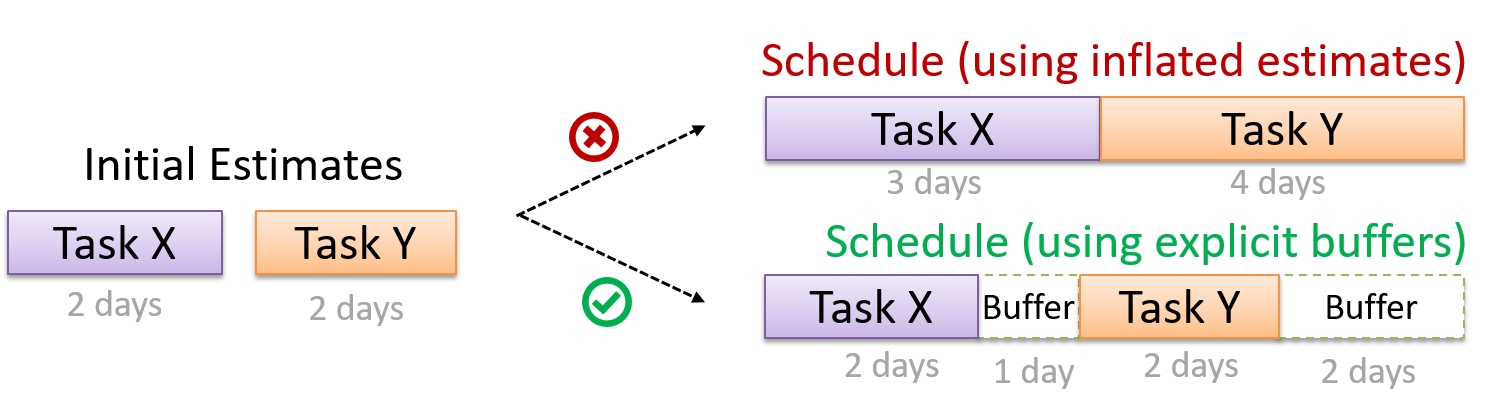

A buffer is a time set aside to absorb any unforeseen delays. It is very important to include buffers in a software project schedule because effort/time estimations for software development is notoriously hard. However, do not inflate task estimates to create hidden buffers; have explicit buffers instead.  Reason: With explicit buffers it is easier to detect incorrect effort estimates which can serve as a feedback to improve future effort estimates.

Keeping track of project tasks (who is doing what, which tasks are ongoing, which tasks are done etc.) is an essential part of project management. In small projects it may be possible to track tasks using simple tools as online spreadsheets or general-purpose/light-weight tasks tracking tools such as Trello. Bigger projects need more sophisticated task tracking tools.

Issue trackers (sometimes called bug trackers) are commonly used to track task assignment and progress. Most online project management software such as GitHub, SourceForge, and BitBucket come with an integrated issue tracker.

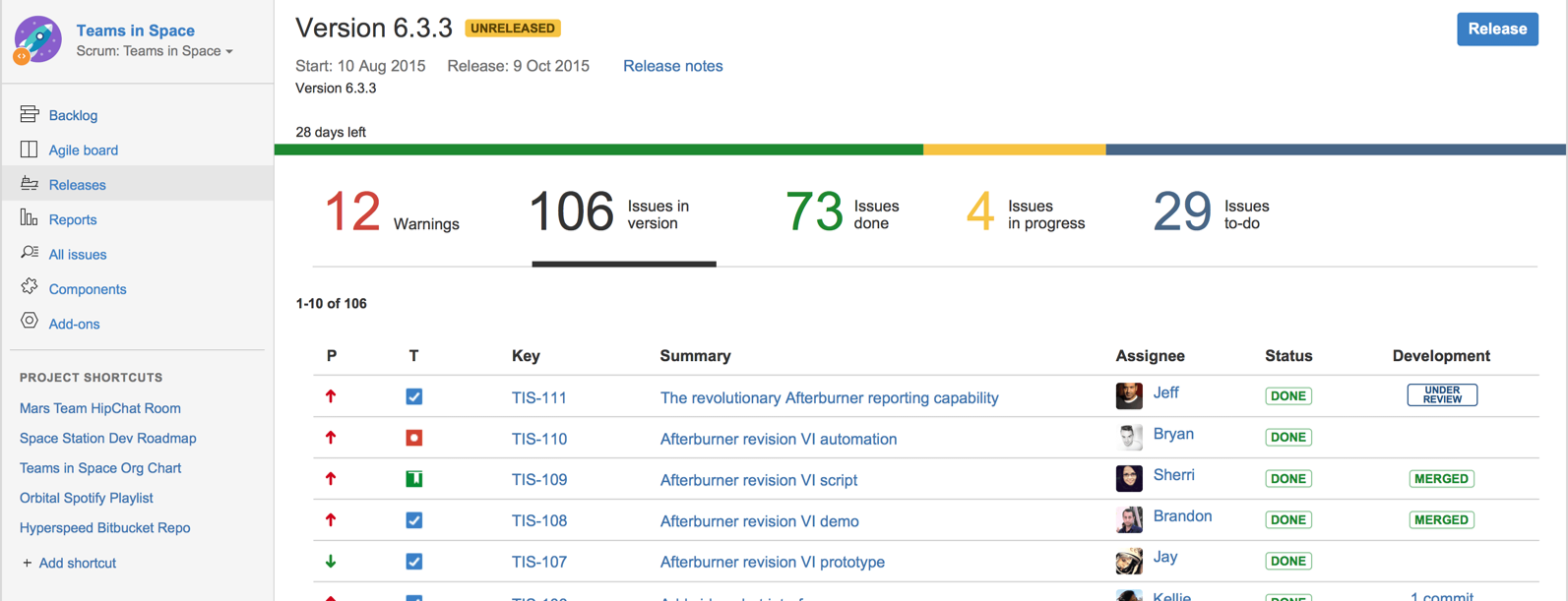

📦 A screenshot from the Jira Issue tracker software (Jira is part of the BitBucket project management tool suite):

A Gantt chart is a 2-D bar-chart, drawn as time vs tasks (represented by horizontal bars).

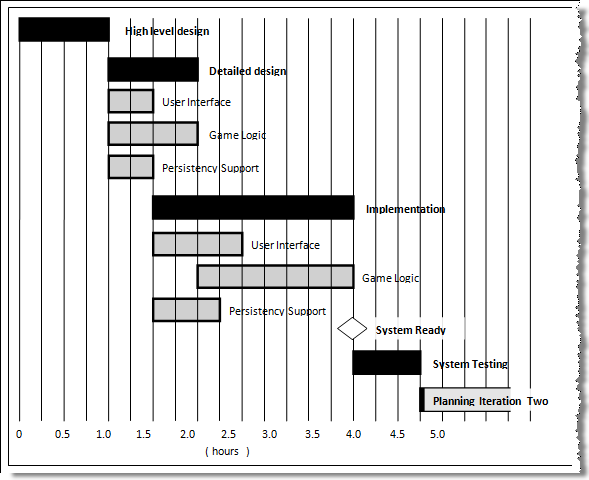

📦 A sample Gantt chart:

In a Gantt chart, a solid bar represents the main task, which is generally composed of a number of subtasks, shown as grey bars. The diamond shape indicates an important deadline/deliverable/milestone.

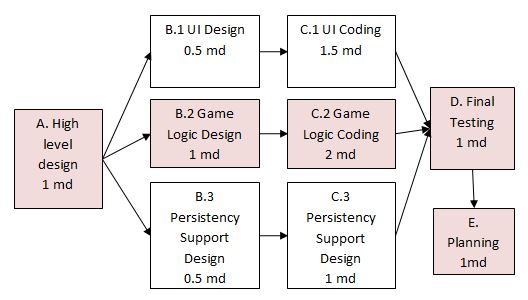

PERT (Program Evaluation Review Technique) chart uses a graphical technique to show the order/sequence of tasks. It is based on a simple idea of drawing a directed graph in which:

• Node or vertex captures the effort estimation of a task, and
• Arrow depicts the precedence between tasks

A PERT chart can help determine the following important information:

• The order of tasks.  In the example above, Final Testing cannot begin until all coding of individual subsystems have been completed.
• Which tasks can be done concurrently.  In the example above, the various subsystem designs can start independently once the High level design is completed.
• The shortest possible completion time.  In the example above, there is a path (indicated by the shaded boxes) from start to end that determines the shortest possible completion time.
• The Critical Path.  In the example above, the shortest possible path is also the critical path.

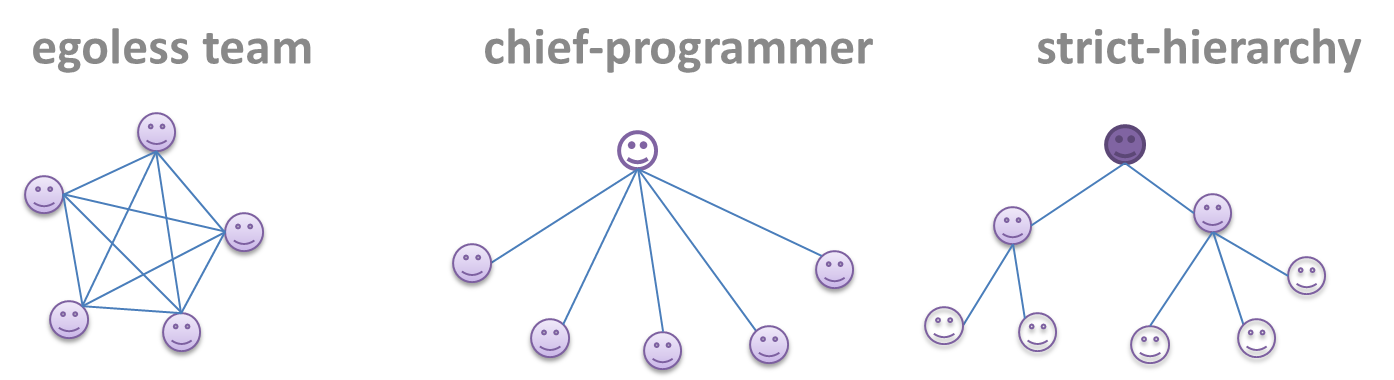

Given below are three commonly used team structures in software development. Irrespective of the team structure, it is a good practice to assign roles and responsibilities to different team members so that someone is clearly in charge of each aspect of the project. In comparison, the ‘everybody is responsible for everything’ approach can result in more chaos and hence slower progress.

Egoless team

In this structure, every team member is equal in terms of responsibility and accountability. When any decision is required, consensus must be reached. This team structure is also known as a democratic team structure. This team structure usually finds a good solution to a relatively hard problem as all team members contribute ideas.

However, the democratic nature of the team structure bears a higher risk of falling apart due to the absence of an authority figure to manage the team and resolve conflicts.

Chief programmer team

Frederick Brooks proposed that software engineers learn from the medical surgical team in an operating room. In such a team, there is always a chief surgeon, assisted by experts in other areas. Similarly, in a chief programmer team structure, there is a single authoritative figure, the chief programmer. Major decisions, e.g. system architecture, are made solely by him/her and obeyed by all other team members. The chief programmer directs and coordinates the effort of other team members. When necessary, the chief will be assisted by domain specialists e.g. business specialists, database expert, network technology expert, etc. This allows individual group members to concentrate solely on the areas where they have sound knowledge and expertise.

The success of such a team structure relies heavily on the chief programmer. Not only must he be a superb technical hand, he also needs good managerial skills. Under a suitably qualified leader, such a team structure is known to produce successful work. .

Strict hierarchy team

In the opposite extreme of an egoless team, a strict hierarchy team has a strictly defined organization among the team members, reminiscent of the military or bureaucratic government. Each team member only works on his assigned tasks and reports to a single “boss”.

In a large, resource-intensive, complex project, this could be a good team structure to reduce communication overhead.

Software development goes through different stages such as requirements, analysis, design, implementation and testing. These stages are collectively known as the software development life cycle (SDLC). There are several approaches, known as software development life cycle models (also called software process models) that describe different ways to go through the SDLC. Each process model prescribes a "roadmap" for the software developers to manage the development effort. The roadmap describes the aims of the development stage(s), the artifacts or outcome of each stage as well as the workflow i.e. the relationship between stages.

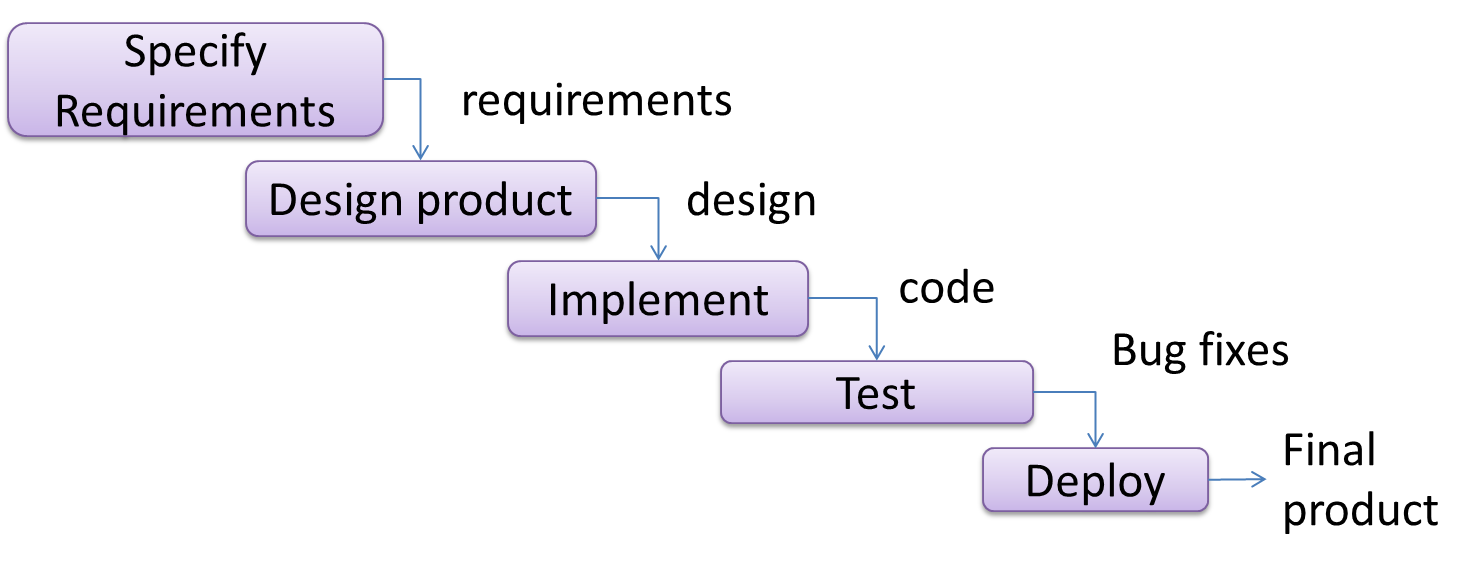

The sequential model, also called the waterfall model, models software development as a linear process, in which the project is seen as progressing steadily in one direction through the development stages. The name waterfall stems from how the model is drawn to look like a waterfall (see below).

When one stage of the process is completed, it should produce some artifacts to be used in the next stage. For example, upon completion of the requirement stage a comprehensive list of requirements is produced that will see no further modifications. A strict application of the sequential model would require each stage to be completed before starting the next.

This could be a useful model when the problem statement that is well-understood and stable. In such cases, using the sequential model should result in a timely and systematic development effort, provided that all goes well. As each stage has a well-defined outcome, the progress of the project can be tracked with a relative ease.

The major problem with this model is that requirements of a real-world project are rarely well-understood at the beginning and keep changing over time. One reason for this is that users are generally not aware of how a software application can be used without prior experience in using a similar application.

The iterative model (sometimes called iterative and incremental) advocates having several iterations of SDLC. Each of the iterations could potentially go through all the development stages, from requirement gathering to testing & deployment. Roughly, it appears to be similar to several cycles of the sequential model.

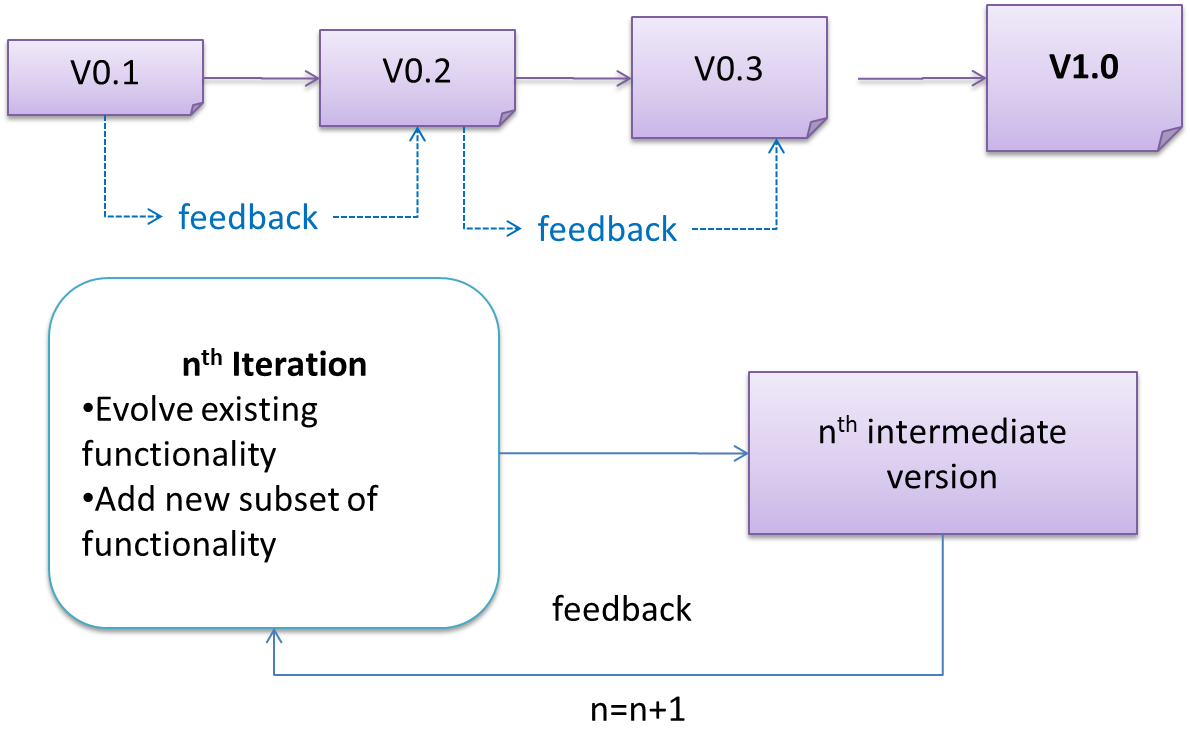

In this model, each of the iterations produces a new version of the product. Feedback on the version can then be fed to the next iteration. Taking the Minesweeper game as an example, the iterative model will deliver a fully playable version from the early iterations. However, the first iteration will have primitive functionality, for example, a clumsy text based UI, fixed board size, limited randomization etc. These functionalities will then be improved in later releases.

The iterative model can take a breadth-first or a depth-first approach to iteration planning.

• breadth-first: an iteration evolves all major components in parallel.
• depth-first: an iteration focuses on fleshing out only some components.

Most project use a mixture of breadth-first and depth-first iterations. Hence, the common phrase ‘an iterative and incremental process’.

In 2001, a group of prominent software engineering practitioners met and brainstormed for an alternative to documentation-driven, heavyweight software development processes that were used in most large projects at the time. This resulted in something called the agile manifesto (a vision statement of what they were looking to do).

We are uncovering better ways of developing software by doing it and helping others do it.

Through this work we have come to value:

• Individuals and interactions over processes and tools
• Working software over comprehensive documentation
• Customer collaboration over contract negotiation
• Responding to change over following a plan

That is, while there is value in the items on the right, we value the items on the left more.
_{Extract from the Agile Manifesto}

Subsequently, some of the signatories of the manifesto went on to create process models that try to follow it. These processes are collectively called agile processes. Some of the key features of agile approaches are:

• Requirements are prioritized based on the needs of the user, are clarified regularly (at times almost on a daily basis) with the entire project team, and are factored into the development schedule as appropriate.
• Instead of doing a very elaborate and detailed design and a project plan for the whole project, the team works based on a rough project plan and a high level design that evolves as the project goes on.
• Strong emphasis on complete transparency and responsibility sharing among the team members. The team is responsible together for the delivery of the product. Team members are accountable, and regularly and openly share progress with each other and with the user.

There are a number of agile processes in the development world today. eXtreme Programming (XP) and Scrum are two of the well-known ones.

The following description was adapted from the XP home page, emphasis added:

Extreme Programming (XP) stresses customer satisfaction. Instead of delivering everything you could possibly want on some date far in the future, this process delivers the software you need as you need it.

XP aims to empower developers to confidently respond to changing customer requirements, even late in the life cycle.

XP emphasizes teamwork. Managers, customers, and developers are all equal partners in a collaborative team. XP implements a simple, yet effective environment enabling teams to become highly productive. The team self-organizes around the problem to solve it as efficiently as possible.

XP aims to improve a software project in five essential ways: communication, simplicity, feedback, respect, and courage. Extreme Programmers constantly communicate with their customers and fellow programmers. They keep their design simple and clean. They get feedback by testing their software starting on day one. Every small success deepens their respect for the unique contributions of each and every team member. With this foundation, Extreme Programmers are able to courageously respond to changing requirements and technology.

XP has a set of simple rules. XP is a lot like a jig saw puzzle with many small pieces. Individually the pieces make no sense, but when combined together a complete picture can be seen. This flow chart shows how Extreme Programming's rules work together.

Pair programming, CRC cards, project velocity, and standup meetings are some interesting topics related to XP. Refer to extremeprogramming.org to find out more about XP.

This description of Scrum was adapted from Wikipedia [retrieved on 18/10/2011], emphasis added:

Scrum is a process skeleton that contains sets of practices and predefined roles. The main roles in Scrum are:

• The Scrum Master, who maintains the processes (typically in lieu of a project manager)
• The Product Owner, who represents the stakeholders and the business
• The Team, a cross-functional group who do the actual analysis, design, implementation, testing, etc.

A Scrum project is divided into iterations called Sprints. A sprint is the basic unit of development in Scrum. Sprints tend to last between one week and one month, and are a timeboxed (i.e. restricted to a specific duration) effort of a constant length.

Each sprint is preceded by a planning meeting, where the tasks for the sprint are identified and an estimated commitment for the sprint goal is made, and followed by a review or retrospective meeting, where the progress is reviewed and lessons for the next sprint are identified.

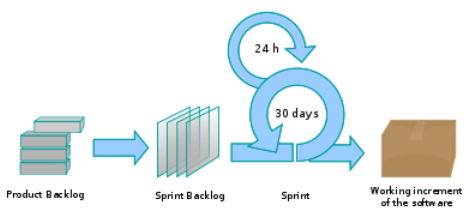

During each sprint, the team creates a potentially deliverable product increment (for example, working and tested software). The set of features that go into a sprint come from the product backlog, which is a prioritized set of high level requirements of work to be done. Which backlog items go into the sprint is determined during the sprint planning meeting. During this meeting, the Product Owner informs the team of the items in the product backlog that he or she wants completed. The team then determines how much of this they can commit to complete during the next sprint, and records this in the sprint backlog. During a sprint, no one is allowed to change the sprint backlog, which means that the requirements are frozen for that sprint. Development is timeboxed such that the sprint must end on time; if requirements are not completed for any reason they are left out and returned to the product backlog. After a sprint is completed, the team demonstrates the use of the software.

Scrum enables the creation of self-organizing teams by encouraging co-location of all team members, and verbal communication between all team members and disciplines in the project.

A key principle of Scrum is its recognition that during a project the customers can change their minds about what they want and need (often called requirements churn), and that unpredicted challenges cannot be easily addressed in a traditional predictive or planned manner. As such, Scrum adopts an empirical approach—accepting that the problem cannot be fully understood or defined, focusing instead on maximizing the team’s ability to deliver quickly and respond to emerging requirements.

Daily Scrum is another key scrum practice. The description below was adapted from https://www.mountaingoatsoftware.com (emphasis added):

The unified process is developed by the Three Amigos - Ivar Jacobson, Grady Booch and James Rumbaugh (the creators of UML).

The unified process consists of four phases: inception, elaboration, construction and transition. The main purpose of each phase can be summarized as follows:

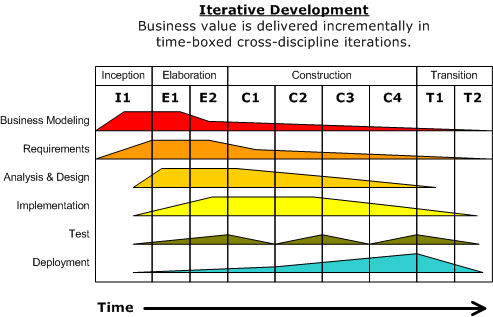

Given above is a visualization of a project done using the Unified process (source: Wikipedia). As the diagram shows, a phase can consist of several iterations. Each vertical column (labeled “I1” “E1”, “E2”, “C1”, etc.) represents a single iteration. Each of the iterations consists of a set of ‘workflows’ such as ‘Business modeling’, ‘Requirements’, ‘Analysis & Design’ etc. The shaded region indicates the amount of resource and effort spent on a particular workflow in a particular iteration.

Unified process is a flexible and customizable process model framework rather than a single fixed process. For example, the number of iterations in each phase, definition of workflows, and the intensity of a given workflow in a given iteration can be adjusted according to the nature of the project. Take the Construction Phase, to develop a simple system, one or two iterations would be sufficient. For a more complicated system, multiple iterations will be more helpful. Therefore, the diagram above simply records a particular application of the UP rather than prescribe how the UP is to be applied. However, this record can be refined and reused for similar future projects.

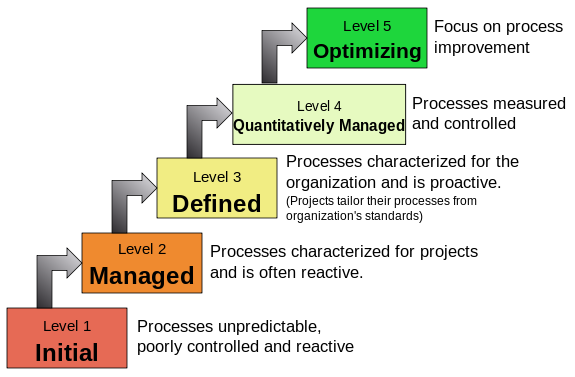

CMMI defines five maturity levels for a process and provides criteria to determine if the process of an organization is at a certain maturity level. The diagram below [taken from Wikipedia] gives an overview of the five levels.

Revision Control Software (RCS) are the software tools that automate the process of Revision Control i.e. managing revisions of software artifacts.

Revision control is also known as Version Control Software (VCS), and a few other names. Here, we use the terms revision and version interchangeably.

UML class diagrams describe the structure (but not the behavior) of an OOP solution. These are possibly the most often used diagrams in the industry and an indispensable tool for an OO programmer.

📦 An example class diagram:

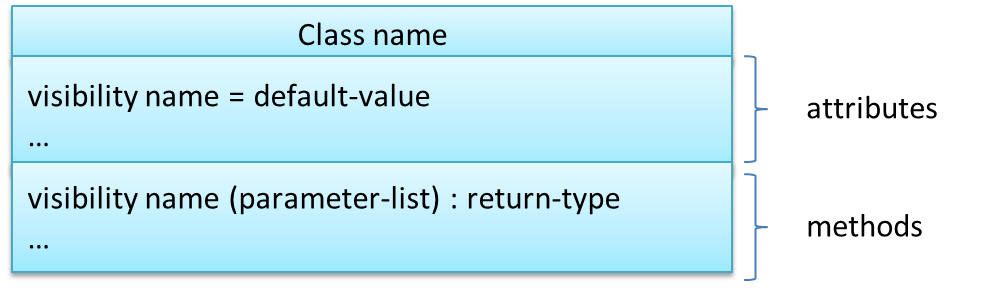

The basic UML notations used to represent a class:

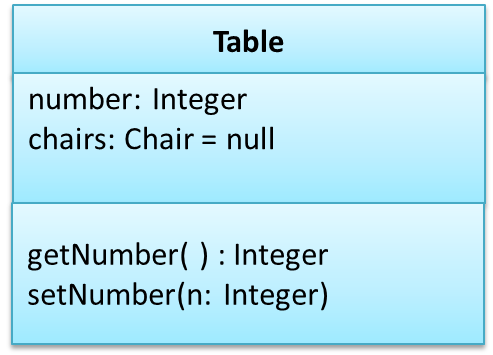

📦 A Table class shown in UML notation:

class Table{

    Integer number;
    Chair[] chairs = null;

    Integer getNumber(){
        ...
    }

    void setNumber(Integer n){
        ...
    }
}

The 'Operations' compartment and/or the 'Attributes' compartment may be omitted if such details are not important for the task at hand. 'Attributes' always appear above the 'Operations' compartment. All operations should be in one compartment rather than each operation in a separate compartment. Same goes for attributes.

The visibility of attributes and operations is used to indicate the level of access allowed for each attribute or operation. The types of visibility and their exact meanings depend on the programming language used. Here are some common visibilities and how they are indicated in a class diagram:

• + : public
• - : private
• # : protected
• ~ : package private

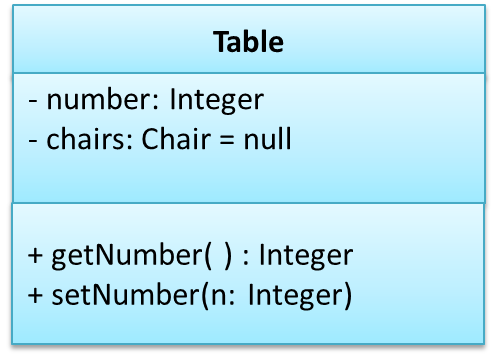

📦 Table class with visibilities shown:

We use a solid line to show an association between two classes.

We use arrow heads to indication the navigability of an association.

📦 Logic is aware of Minefield, but Minefield is not aware of Logic

class Logic{
    Minefield minefield;
}

class Minefield{
    ...
}

Navigability can be shown in class diagrams as well as object diagrams.

Association Role labels are used to indicate the role played by the classes in the association.

📦 This association represents a marriage between a Man object and a Woman object. The respective roles played by objects of these two classes are husband and wife.

Note how the variable names match closely with the association roles.

class Man{
    Woman wife;
}

class Woman{
    Man husband;
}

📦 The role of Student objects in this association is charges (i.e. Admin is in charge of students)

class Admin{
    List<Student> charges;
}

Association labels describe the meaning of the association. The arrow head indicates the direction in which the label is to be read.

📦 In this example, the same association is described using two different labels.

• Diagram on the left: Admin class is associated with Student class because an Admin object uses a Student object.
• Diagram on the right: Admin class is associated with Student class because a Student object is used by an Admin object.

Commonly used multiplicities:

• 0..1 : optional, can be linked to 0 or 1 objects
• 1 : compulsory, must be linked to one object at all times.
• * : can be linked to 0 or more objects.
• n..m : the number of linked objects must be n to m inclusive

📦 In the diagram below, an Admin object administers (in charge of) any number of students but a Student object must always be under the charge of exactly one Admin object

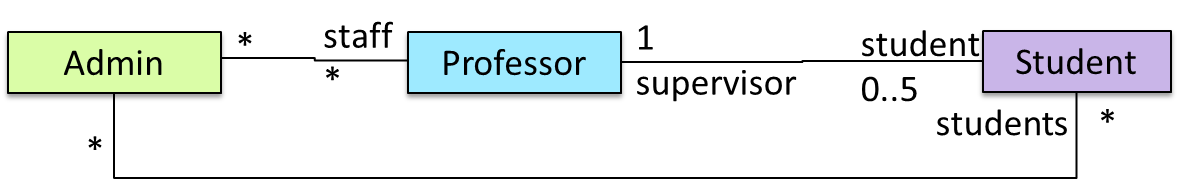

📦 In the diagram below,

• Each student must be supervised by exactly one professor. i.e. There cannot be a student who doesn't have a supervisor or has multiple supervisors.
• A professor cannot supervise more than 5 students but can have no students to supervise.
• An admin can handle any number of professors and any number of students, including none.
• A professor/student can be handled by any number of admins, including none.

An association can be shown as an attribute instead of a line.

Association multiplicities and the default value too can be shown as part of the attribute using the following notation. Both are optional.

name: type [multiplicity] = default value

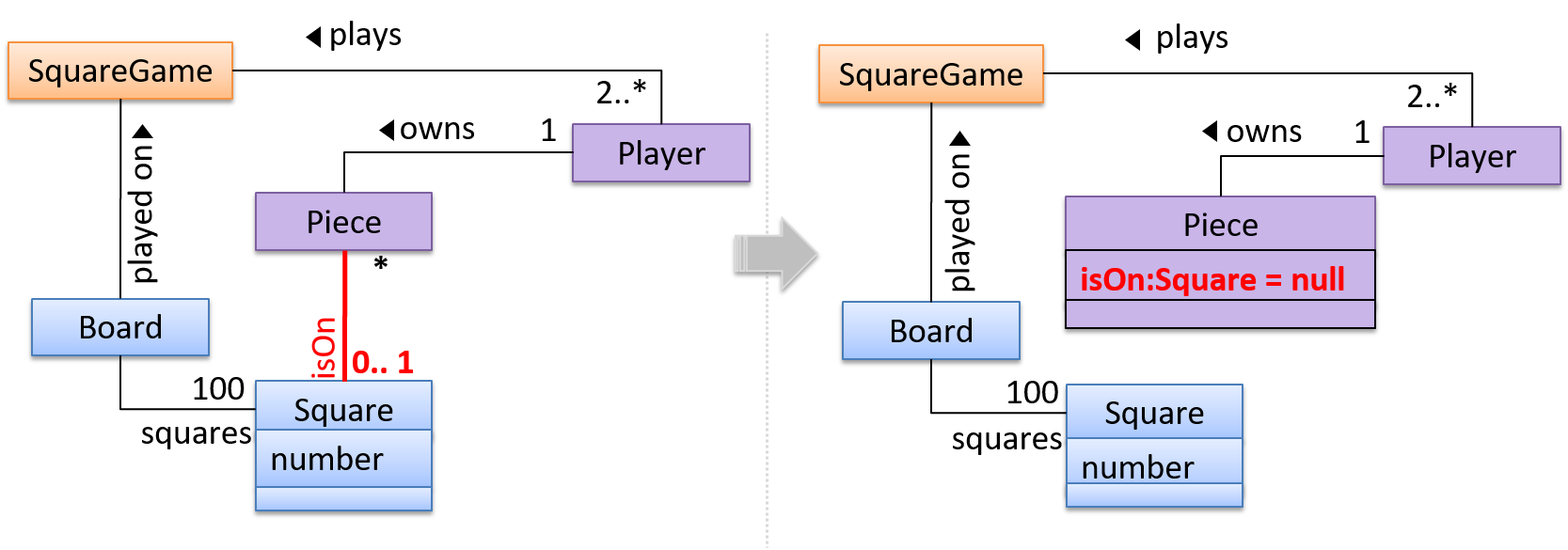

📦 The diagram below depicts a multi-player Square Game being played on a board comprising of 100 squares. Each of the squares may be occupied with any number of pieces, each belonging to a certain player.

A Piece may or may not be on a Square. Note how that association can be replaced by an isOn attribute of the Piece class. The isOn attribute can either be null or hold a reference to a Square object, matching the 0..1 multiplicity of the association it replaces. The default value is null.

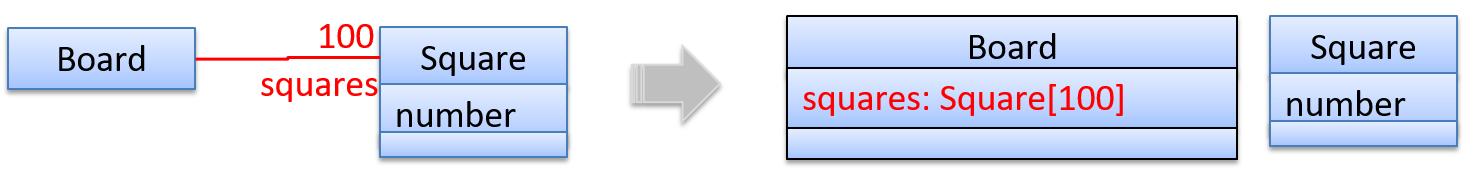

The association that a Board has 100 Sqaures can be shown in either of these two ways:

In UML class diagrams, underlines denote class-level attributes and variables.

📦 In the class below, totalStudents attribute and the getTotalStudents method are class-level.

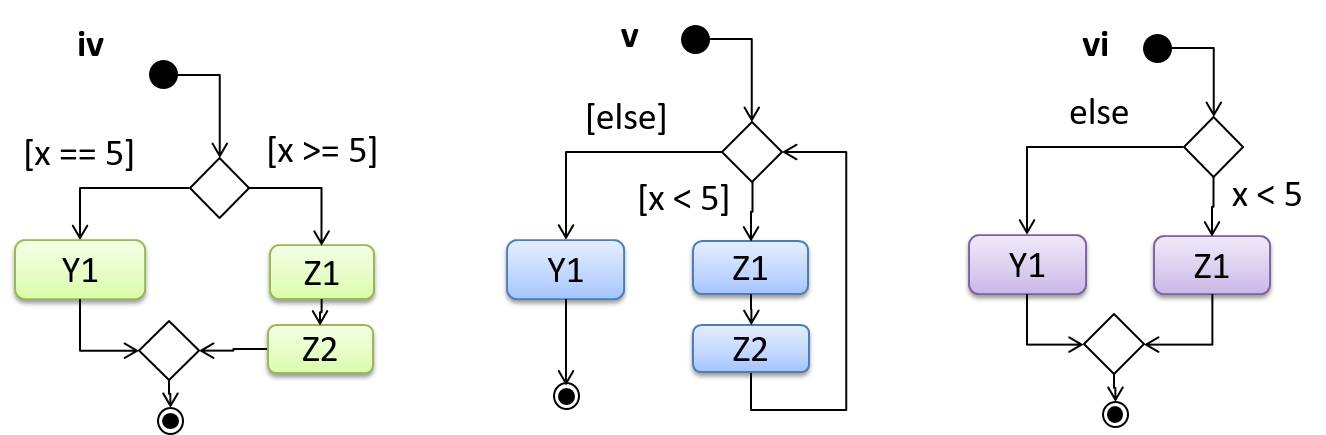

UML uses a solid diamond symbol to denote composition.

Notation:

📦 A Book consists of Chapter objects. When the Book object is destroyed, its Chapter objects are destroyed too.

UML uses a hollow diamond is used to indicate an aggregation.

📦 Example:

You can use a triangle and a solid line (not to be confused with an arrow) to indicate class inheritance.

Notation:

📦 Examples: The Car class inherits from the Vehicle class. The Cat and Dog classes inherit from the Pet class.
